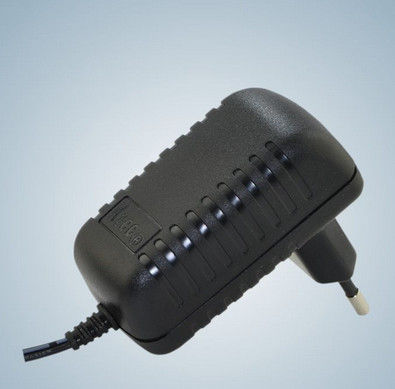

10 W KSAFC Universal AC Power Adapters for Set-top-box with EN60950

10 W KSAFC Universal AC Power Adapters for Set-top-box with EN60950

  • 10 W KSAFC Universal AC Power Adapters for Set-top-box with EN60950
10 W KSAFC Universal AC Power Adapters for Set-top-box with EN60950
Product Details:
Place of Origin: Guangdong, China (Mainland)
Certification: CB , GS , CE ,BEAB, UL , CCC , FCC,PSE.KC
Model Number: 10W KSAFC Series
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: Negotiable
Packaging Details: PE bag + White box
Delivery Time: 30 Days
Payment Terms: T/T
Supply Ability: 1M/Month
Contact Now
Detailed Product Description
High Light:

Universal Power Adapters

,

universal notebook power adapter

10 W KSAFC Universal AC Power Adapters for Set-top-box with EN60950









Brand Name:
Input: •Input Voltage: 90 to 264 VAC
•Frequency : 47-50/60-63HZ
•Input Current : 0.3A (Max) 100/240VAC
•Inrush Current : 50A Max 100VAC at max Load
60A Max 240VAC at max Load
•Leakage Current: 0.25mA Max
Output: •Over voltage protection
•Over current protection
at 110-200% of lo and Auto-recovery
•Electronic short circuit protection
•Operating temperature 0~40℃ Free convection
•Operating humidity 10-80% RH Non Condensing
•Sea level Non-operating temperature -20~ 80℃
Safety standards: •Information technology equipment
•IEC/EN 60950-1, UL 60950-1, CSA C22.2
No. 60950-1-03 GB4943,K60950
Certificates and approvals: •CB , GS , CE ,BEAB, UL , CCC , FCC,PSE.KC
EMI Emission: •Radiation Test&Conduction Test:EN 55022/FCC Part 15
•Harmonic Test:EN 61000-3-2
•Flicker Test:EN 61000-3-3
EMS immunity: •ESD Test:EN 61000-4-2
•RS Test:EN 61000-4-3
•EFT Test:EN 61000-4-4
•Surge Test:EN 61000-4-5
•CS Test:EN 61000-4-6
•DIP Test:EN 61000-4-11
Key Applications: Key Features of KSAFC series
•Light, extra slim, sleek, compact design
•Green power, full complies with CEC level IV, MEPS IV EUP2010
•High power density
•Extra safe design, have got their respective safety approvals
•Completed protect function

Key Applications of KSAFC series
•It’s suitable for an extremely wide range of applications, including:
•Mobile Devices
•Pos
•Audio & Video product
•ADSL
•Set-top-box
•Household appliance
Payment Details: •Payment Terms: T/T,negotiable for OEMs
Main Export Markets: • Eastern Europe
• North America
• Mid East/Africa
• Central/South America
• Asia
• Western Europe
• Australasia

10W KSAFC Series Switching Power Adapters With Wide Range For General I.T.E Use, Set-top-box

10W KSAFC Series Switching Power Adapters With Wide Range For General I.T.E Use, Set-top-box

10W KSAFC Series Switching Power Adapters With Wide Range For General I.T.E Use, Set-top-box



Good quality , competitive price , experienced manufacture , 24 hours on line service , we are awaiting for your instruction , Just call us for more details!
