Gaoxin Industrial Park,Guangming New Zone,Shenzhen City, Guangdong Province, China | Angelwang66@126.com |
Place of Origin: | Shenzhen,China |
Brand Name: | RAYTOP |
Certification: | CE, RoHS, FCC |
Model Number: | RTPA 9001 |
Minimum Order Quantity: | 3K |
---|---|
Price: | Negotiable |
Packaging Details: | Gift box or blister package,20 pcs per carton, customer package available. |
Delivery Time: | 15-20 work days. |
Payment Terms: | T/T, L/C |
Supply Ability: | 30000 Pcs monthly. |
AC Cable: | 1.2M | DC Cable: | 1.2M |
---|---|---|---|
EMI Standards: | FCC Part 15B | Application: | Acer|Asus|Toshiba|Sony|Lenovo|Delta|HP|IBM|Gateway|Liteon |
Protection: | Short Circuit|Over Voltage|Over Current | Input: | AC100-240V |
Output Power: | 90W | Plug: | EU|US|SAA|CCC|UK |
Product Name: | 90W Auto Slim Blue LCD Universal Laptop Power Adapter | Approval: | CE|RoHS|FCC|SAA|UL |
Operating Temperature: | 0~40℃ | ||
High Light: | AC DC Power Adapter,universal laptop power supply |

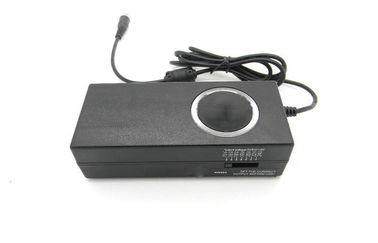

90W Auto Slim Blue LCD Universal Laptop Power Adapter
Quick Detail:

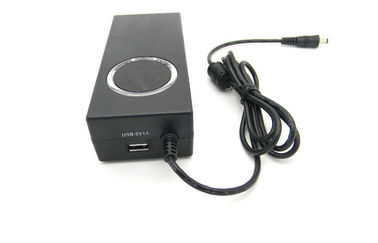

Universal laptop adapter 90W, manual voltage DC 15-24V, with 1x USB port, 5V, 1A. The adapter has unique design come with LED luminous ring on the top cover. Your logo will be added in the center of the LED ring and improve your enterprise image.
Specs:
Input: AC100-240V, 1.8A max.
Output: DC15/16/18/19/20/22/24V
Power Cord:
AC Cable: 2x0.75mm2, or 3x0.75mm2 length: 1.2M
DC Cable: 18AWG, Copper, length: 1.2M
AC Plug: EU, UK, US, SAA, CCC
Features:
- Worldwide input voltage 100~240Vac;
- High efficiency, up to 82%;
- Exclusive model, attractive appearance.
- Protection: Short circuit protection, over voltage protection, over current protection.
- 10 different output connectors for top brands laptops.
- MTBF: 50,000 hours.
Approval: CE, RoHS, FCC
Warranty: 2 years

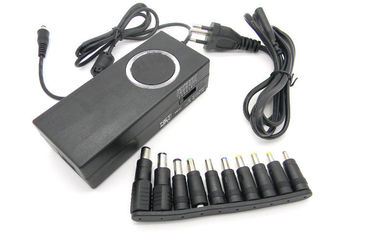

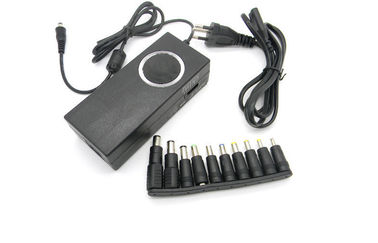

Contents: 1Adapter + 1AC Cable+1DC Cable +10 Connectors
Description:
This is an universal laptop AC Adapter come with unique design and 10 exchangeable tips, have great compatibility with most top brand notebooks, such as Acer, Asus, Toshiba, Sony, Delta, HP/Compaq, Lenovo, IBM,Gateway, Liteon etc. The users can adjust the slider on the side of the adapter to get different output voltage 15/16/18/19/20/22/24V. The adapter has compact design and high efficiency, very easy to carry and can charge your laptops quickly on going.
Note: please select correct output voltage before connecting the adapter with your laptops.
Applications:
External power supply, used to charge most top brand laptops/notebooks, such as Acer, Asus, Toshiba, Sony, Delta, HP/Compaq, Lenovo, IBM,Gateway, Liteon etc. It can also charge personal devices like smart phones, portable DVD, PDA, MP3,MP4 and so on simultaneously when using your laptops.
Specifications:
Input |
Rated Input Voltage |
AC100~240V |
Input Voltage Range |
AC 90~264V |
|
Rated Frequency |
50/60 Hz |
|
Input Frequency Range |
47~63 Hz |
|
Input AC Current |
1.8A |
|
Inrush Current |
30A |
|
Output |
Rated Output Voltage |
DC 12~24V |
Output Voltage |
DC15/16/18/19/20/22/24V |
|
Rated Output Current |
4.5A |
|
Rated Power |
90W |
|
Ripple and Noise |
120mV p-p |
|
Standby Power Consumption |
0.5W |
|
Turn-on |
5s |
|
Hold-up |
20s |
|
Over Voltage Protection |
Yes |
|
Over Current Protection |
Yes |
|
Short Circuit Protection |
Yes, automatically recover after short circuit removed. |
|
Reliability |
Hi-pot |
3000Vac |
Insulation Resistance |
Input to output at 500Vdc |
|
Leakage Current |
5mA |
|
EMI Standards |
FCC Part 15B Class B |
|
RoHS Compliant |
Yes |
|
MTBF |
50,000 hours |
|
Burn-in |
40+/-5 ℃, full load, 4 hours |
|
Drop Test |
6 direction, each one time from height 1.0M |
|
Environmental |
Operating Temperature |
0~40℃ |
Operating Humidity |
10~80% |
|
Storage Temperature |
-20~65℃ |
|
Storage Humidity |
0~90% |
|
Safety Approvals |
CE, RoHS, FCC, UL, SAA |
|
Warranty |
2 Years |
Competitive Advantage:
- Open private model w/o extra cost for you;
- 0.3% free backup of order quantity;
- Direct factory price without middle man.
- High performance-to-price ratio;
- Perfect after-sales service
Contact Person: Miss. Angel
Tel: 1598940345
Fax: 86-755-3697544
