Gaoxin Industrial Park,Guangming New Zone,Shenzhen City, Guangdong Province, China | Angelwang66@126.com |
Place of Origin: | China |
Brand Name: | W&T |
Certification: | CE FCC |
Model Number: | W&T-AD90W 1 IN 1 |
High Light: | ac dc usb power adapter,external ac power adapter |
---|

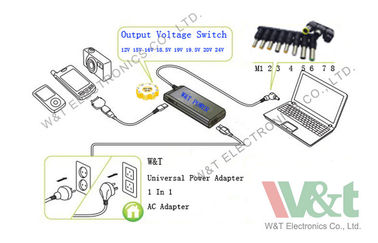

Indoor Laptop Notebook Manual 90W Universal AC Power Adapter DC 10V - 20V With USB
Quick Detail
90W / with USB / indoor use / switch
Input: AC 100-240V Output: DC 10-20V
USB: 5V 1A , adjust voltage,15-24V greatest range of output power
1> Compatible to most netbooks with multiple tips
2> Home or office used and in car and airplane
3> LED charging status indicator
4> Full safety design: OVP, OCP, OTP, SCP, OLP
5> Ultra slim size, fashionable and deluxe design
Competitive Advantage:
High efficiency power, High Reliability (Ultra low no-load /standby power consumption)
Ultrasonic Lamination
Natural Cooling
Meets "ENERGY STAR" program requirement
Over voltage protection
Over load & short circuit protection
100% full load burn-in test
Energy Efficiency: Efficiency level V
Meet CEC and MEPS standard
Application:
.Laptop products, Note-book, laptop computer,
.It can used in Acer, Asus, Samsung, Hp, Dell, Toshiba, Sony, Fujtsu, BENQ, MEDION, HITACHI, IBM/LENOVE, TWINHEAD, MSI, and most brand of notebook.
.USB Port: 5V for cell phone, iphone, ipad, GPS, MP3, PMP, cameras, Game player, and other digital products.
.DC15V 5.5A,
DC 16V 5.5A,
DC 18.5V 4.86A,
DC 19V 4.73A,
DC 19.5V 4.61A,
DC 20V 4.5A,
DC 24V 3.75A,
USB: 5V-1A
Datasheet spec:
Specification: | |||||||||
INPUT | Voltage | 90-264VAC universal full range | |||||||
Frequency | 47-63Hz | ||||||||
Current | <2.5A@100V AC input, full load condition | ||||||||
Inrush Current | <40A@115V , <60A@230V AC input.Cold start at 25℃ ambient | ||||||||
Leakage Current | <2.5A@ 264V AC input | ||||||||
OUTPUT | PART NO. | ADD90W-A | |||||||
Voltage | 15V | 16V | 18.5V | 19V | 19.5V | 20V | 24V | USB 5V | |
Max Load | 0-5.5A | 0-5.5A | 0-4.85A | 0-4.74A | 0-4.6A | 0-4.5A | 0-4.0A | 0-1.0A | |
Output Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | |
Ripple Noise(MAX) | 200mV | 200mV | 200mV | 200mV | 200mV | 200mV | 200mV | 220mV | |
Efficiency(MIN) | ≥85% | ≥85% | ≥85% | ≥85% | ≥85% | ≥85% | ≥85% | ≥85% | |
Output MAX | 90W | 90W | 90W | 90W | 90W | 90W | 90W | 90W | |
PROTECTION | Over Voltage | over 120%~150 max | |||||||
Shutdown and latch off, recover after re-start up | |||||||||
Over Load & | When power supply over 105%~150 max load or short circuit acted,powr supply will be shutdown and recover automatically after the fault is removed | ||||||||
Over Temperature | Over 95℃,the power supply will shutdown. | ||||||||
ENIRONMENT | Temperature | Operating:-20~70℃;De-rating:45~70℃:2.5%/℃;Storage:-40~+85℃ | |||||||
Humidity | Operating: 20%~90% RH(non condensing);Storage:10%~95% RH(non condensing) | ||||||||
SAFETY | Withstand voltage | I/P-O/P:3KVAC,I/P-PE:1.5KVAC,O/P-PE:0.5KVAC,1 minute | |||||||
Isolation resistance | I/P-O/P,I/P-FG,O/P-FG>100MΩ/500VDC at 25℃/70% RH | ||||||||
Safety standard | UL 60950-1 2nd,CSA C22.2 No.60950-1-07 2nd,TU EN 60950-1:2006, | ||||||||
EMC | EMI | EN 55022 CLASS B,FCC CFR 47 PART 15 CLASS B,CNS 13438 CLASS B | |||||||
Compliance to EN61000-3-2 CLASS D,EN61000-3-3 | |||||||||
EMS | EN55024:EN61000-4-2,3,4,5,6,8,11 | ||||||||
OTHERS | Cooling | Natural Cooling | |||||||
M.T.B.F. | 100K hours | ||||||||
Dimension | 143x57x30mm ( L*W*H ) | ||||||||
Packing | N.W.:70g/1pc; 15pcs/1.05kg CUFT/1 CTN | ||||||||
|
|
|
Mechanical spec:
Factory View:
