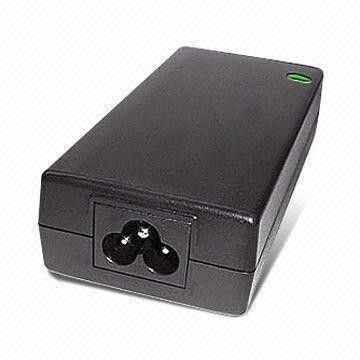

11-18W Universal AC DC Switching Power Supply Adapter with 12 to 50V Output

Product Details:

Place of Origin:	China

Contact Now

Detailed Product Description

Universal input voltage: 90 to 264VAC
Interchangeable plug and desktop type available
Single output: 11-18W
Works anywhere the output is 12-50V DC
Overload, over-voltage, and short-circuit protection
Constant current mode for lead-acid battery charger
All products are 100% full load burn-in tested
Specifications:
- Withstand voltage:
  - I/P-O/P: 3,000VAC(Class II)
  - I/P-O/P(V+): 4242 VDC
  - I/P-F/G: 2121 VDC(for Class I)
- Efficiency: 72% type at full load.
- Voltage regulation: +/-5% Max.
- Working temperature: -10 to 50 degrees C (from 100% load at 40 degrees C to 75% load at 50 degrees C)
- Storage temperature: -20 to +85 degrees C
- Operating humidity: 20 to 90% RH
- Protections: OVP, OLP, and short-circuit protection
- Safety approvals: UL, cUL, GS, CB, CE, PSE, CCC, BSMI, FCC, C-Tick, LPS and CEC IV and V compliant
- Model number: Output volt/Output current/Maximum watts/CEC level
  - FRA018-S05-x: 5-6V 2.40-2.0A 11W CEC Level V
  - FRA018-S07-x: 6-8V 2.20-1.63A 13W CEC Level V
  - FRA018-S09-x: 8-11V 2.25-1.64A 18W CEC Level V
  - FRA018-S12-x: 11-13V 1.64-1.39A 18W CEC Level V
  - FRA018-S15-x: 13-16V 1.39-1.13A 18W CEC Level V
  - FRA018-S18-x: 16-21V 1.13-0.86A 18W CEC Level V
  - FRA018-S24-x: 21-27V 0.86-0.67A 18W CEC Level V
  - FRA018-S30-x: 27-33V 0.67-0.55A 18W CEC Level IV
  - FRA018-S36-x: 33-40V 0.55-0.45A 18W CEC Level IV
  - FRA018-S48-x: 40-50V 0.45-0.36A 18W CEC Level IV
- x = U/E/B/A/I denote US/EU/UK/AS/interchangeable plug
- x= 6/4/8 denote C6/C14/C8 inlet
