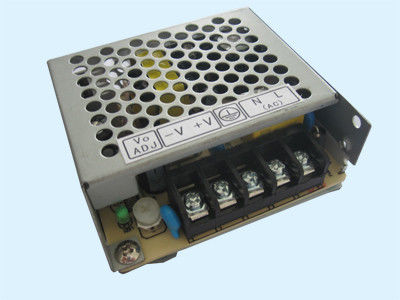

5vdc Industrial Power Supply 25w For IT Digital Products , Constant Current

Electronics Specification:

Input Voltage Range:

90~264Vac

AC current:

0.3A

Frequency:

50/60Hz

Inrush Current:

30A/230Vac

Leakage Current:

<0.3Ma/240Vac

Output Voltage:

5.0Vdc

Output Voltage Range:

4.50Vdc to 5.50Vdc

Output Current:

4.5A

Output power:

22.5W (Max)

Voltage tolerance:

±5%

Line regulation:

±1%

Load regulation:

±5%

Set up time, Rise time, Hold-up time:

50ms,50ms,20ms

Ripple and Noise Test Condition :

<50 mVp-p

Efficiency:

＞75%

Over current protection:

Over Current limit ≤2.0A (Max) in CC Mode

Output Short Circuit Protection:

Can be Shorted without damage and auto recovery

Environment

Working Temp.:

0~40℃

Working Humidity:

20%~90% RH non-condensing

Storage Temp. & Humidity:

-20℃~85℃, 10%~95% RH

Reliability

Hi-Pot Testing Voltage :

I/P-O/P: 3KVAC, I/P-FG:1.5KVAC；O/P-FG:0.5KVAC 1min

Isolation resistance:

I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms

Safety Standard :

EN60950

EMI Standard :

EN55022B

Safety Approval:

Certificate

CE

Mechanical Characteristics

Size:

(L)74*(W)68*(H)27mm
