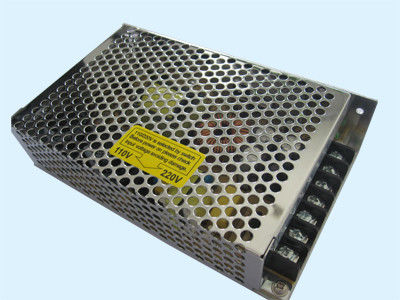

48vdc Industrial Single Output Switching Power Supply High Voltage 100w

48vdc Industrial Single Output Switching Power Supply High Voltage 100w

48vdc Industrial Single Output Switching Power Supply High Voltage 100w
Product Details:
Contact Now
Detailed Product Description
High Light:

industrial dc power supply

,

switch mode power supply

48vdc Industrial Single Output Switching Power Supply High Voltage 100w



Feature:



. Input Voltage Range : 90~132VAC;180~264VAC

. Switch Mode

. Compliance Rohs , REACH

. Protection: Short Circuit , Over Current

. Warranty : 2 Years

. Used On LED Light , Communication Products





Description :



Switch Mode Industrial Power Supply 48V 100W Single Output

Electronics Specification :

Input Voltage Range:

90~132VAC;180~264VAC

AC current:

2.5A At 115Vac ; 1.2A At 230Vac

Frequency:

50 / 60Hz

Inrush Current:

40A / 230Vac

Leakage Current:

<0.5 mA / 240Vac

Output Voltage:

48.0Vdc

Output Voltage Range:

45.60Vdc to 50.4Vdc

Output Current:

2.0A

Output power:

96.0W (Max)

Line regulation:

±1%

Load regulation:

±5%

Set up time, Rise time, Hold-up time:

50ms,50ms,20ms

Ripple and Noise Test Condition :

<100 mVp-p

Efficiency:

>84%

Over current protection:

Over Current limit ≤2.0A (Max) in CC Mode

Output Short Circuit Protection:

Can be Shorted without damage and auto recovery

Environment

Working Temp.:

0~40℃

Working Humidity:

20%~90% RH non-condensing

Storage Temp. & Humidity:

-20℃~85℃, 10%~95% RH

Reliability

Hi-Pot Testing Voltage :

I/P-O/P: 3KVAC, I/P-FG:1.5KVAC;O/P-FG:0.5KVAC 1min

Isolation resistance:

I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms

Safety Standard :

EN60950

EMI Standard :

EN55022B

Safety Approval:

Certificate

CE

Mechanical Characteristics

Size:

(L)159 * (W)98 * (H)38mm





48vdc Industrial Single Output Switching Power Supply High Voltage 100w 0



Remark:



. All parameters are specified at 220Vac input, rated load,25℃ 70% RH ambient;

. Tolerance: includes set up tolerance, line regulation, load regulation,

. Ripple & Noise are measured at 20MHz of bandwidth by using a 30cm twisted-pair wire terminated with a    0.1uf & 47uf parallel capacitor;

. Line regulation is measured from low line to high line at rated load;

. Load regulation is measured from 20%~100% at rated load.





Applications:



widely used in household appliances, IT digital products,  medical equipments, communication equipments, instrumentations, bank data equipment, computer peripheral products, security monitoring system, industrial and light field equipment and other products.





Factory Show:



48vdc Industrial Single Output Switching Power Supply High Voltage 100w 1
