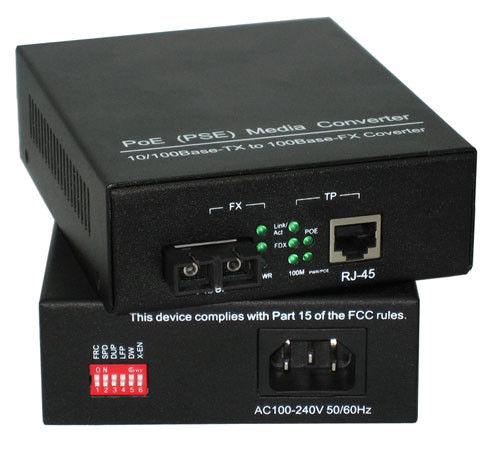

10M / 100M Power Over Ethernet PSE Media Converter Built In AC / DC Power Supply

10M / 100M Power Over Ethernet PSE Media Converter Built In AC / DC Power Supply

Features

-10/100Base-TX UTP to 100Base-FX fiber media convertion
-IEEE802.3af PoE PSE compatible
-9K bytes packet at cut-through mode
-Built-in AC/DC power supply
-Over-current protection
-choice of SC, BiDi or LC connectors for multimode and singlemode
-DIP switch to set different configurations
-LFP (Link Fault Pass-through)

POE-FR200 is a 10/100Base-TX to 100Base-FX media converter, which allows two types of network segment to be connected easily. Complied with IEEE802.3af standard, the AC/DC powered PoE media converter is a Power Sourcing Equipment (PSE) which combines data transfered over a fiber optic link with 48V (or other voltage) power supply, providing power to IEEE802.3af powered device (PD) over CAT5 UTP cable (cable length up to 100meters / 330feets). The converter includes a single port PSE controller, which offers PD signature sensing and power monitoring features. Other features include over-current protection, LFP function. The LFP (Link Fauit Pass-through) allows the media converter to monitor both the fiber and copper RX port for loss of signal. In case of a loss of RX signal on one media port, the converter will automatically disable the TX signal to the other media port, thus passing through the link fault.

Technical Specifications:

Data Rates:

- 10/100 Mbps (802.3 10Base-T/802.3u 100Base-T)
- 100Mbps (100Base-FX)

Input Power Requirements:

- Input voltage ........................... 100 VAC to 240 VAC
- Input frequency ................................. 47 Hz to 63 Hz

Power over Ethernet Output:

- Pin Assignment and Polarity……...4/5 (V+), 7/8 (V-)
- Output Power…..please refer to ordering information
- Efficiency ....................................................75% min
- Short circuit protection........................ auto recovery
- Over current protection ....................... auto recovery

Environmental Conditions:

- Operating temperature ....................... …0℃ to 50℃
- Cooling ........................................ free air convection
- Storage temperature ...................... -20℃ to +85℃
- Operating Humidity …... 90% max, non-condensing

Mechanical Specifications:

- Case Material………………………………Iron
- Case Color………………………………….Black
- Net Weight…………………….540g approx. / unit
- Dimensions………110(W) x 40(H) x 140(L) (mm)
Do not include transceiver length

Connectors:

- AC Inlet……………………………………IEC-J-4
- LAN……………………………….Shielded RJ-45
- Fiber………………………………see ordering information

Ordering Information:

*XX-XXX: supports optic connector / fiber type and distance. For more details, please refer to the list below.
