High Stability AC DC Power Standards Source Three Phase for Industry

High Stability AC DC Power Standards Source Three Phase for Industry

  • High Stability AC DC Power Standards Source Three Phase for Industry
High Stability AC DC Power Standards Source Three Phase for Industry
Product Details:
Place of Origin: China
Brand Name: Artel
Model Number: AT3031
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Wooden box
Delivery Time: 1 month
Payment Terms: TT
Contact Now
Detailed Product Description
Product Name: Meter Test Equipment Output: 2nd ~63rd Harmonics
Application: High Stability Feature: Modular Design, Strong Anti–interference Ability
Screen: 8 Inch Color Touch Screen Power Supply: 90-265VAC/DC
High Light:

Power Meter Tester

,

Power Meter Calibrator

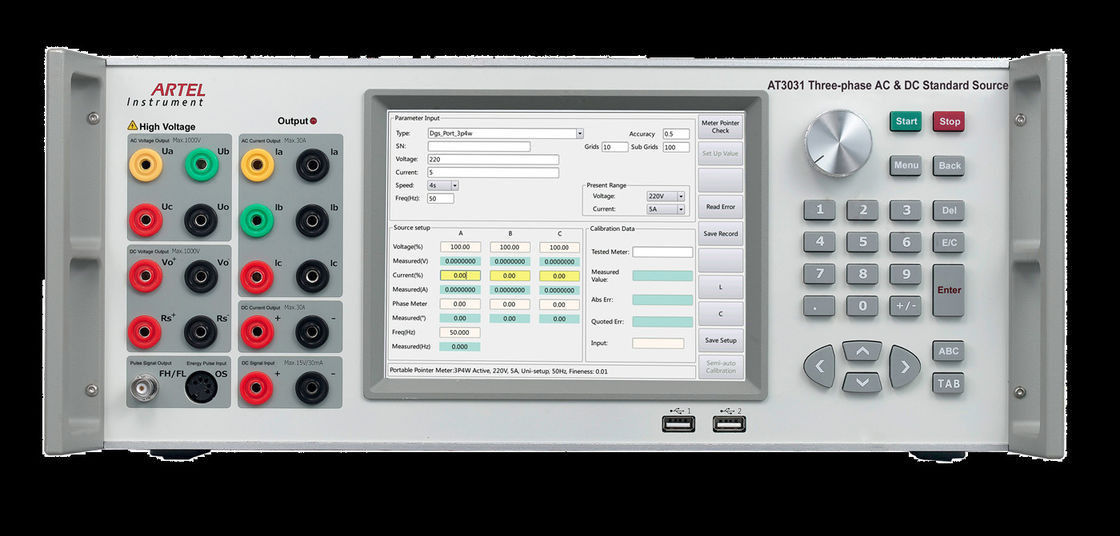

High Stability AC DC Power Standards Source Three Phase for Industry





Profile



AT3031 is suitable for the measurement department of research institution, power grid corporation,

railway and national measurement institution at all levels, and test, production, calibration in meter

manufacture.





Main function



Support various tests including indicating meter, digital meter, energy meter, etc.

Output 2nd ~63rd harmonics;





Main features:



High stability, low waveform distortion;

8 inch color touch screen, interface friendly, easy to operate;

Equipped with RS232, Ethernet, and WiFi interface, AT3031 can either support stand-alone operation,

PC control or handy wireless terminal control;

Communicate with tested meter thru RS485;

Customize and develop the automatically adjustment and calibration system;

Self-protection, alarming and displaying overload location for equipment output overload, Voltage short-circuit, Current open-circuit;

Automatically detect, diagnose and alarm for failure.

Remotely updating online, easily achieve software updating;

Support calibrating by userself.





Type



AT3031C three phase AC, DC standard source, class 0.05

AT3031B three phase AC, DC standard source, class 0.1





Technical specification



AC voltage output

AC large voltage output

Range: (Phase A) 30V, 100V, 300V, 660V, 1000V;

(Phase B, C) 30V, 100V, 300V, 660V;

Adjustment range: (0~120) %RG, RG refers to range, similarly hereafter; Phase A 1000V: (0~100) %RG;

Adjustment resolution: 0.01%RG, 0.1%RG, 1%RG, 10%RG for option;

Stability: 0.005%/1min (0.05 class), 0.01%/1min (class 0.1);

Distortion: ≤0.1% (Non-capacitive load);

Output maximum load: 25VA each phase (resistive load);

Accuracy: 0.05%RG (0.05 class), 0.1%RG (class 0.1);



AC small voltage output

Range: phase A: 75mV, 300mV, 750mV, 3V, 7.5V;

Adjustment range: (0~120) %RG, RG refers to range, similarly hereafter;

Adjustment resolution: 0.01%RG, 0.1%RG, 1%RG, 10%RG for option;

Stability: 0.005%/1min (0.05 class), 0.01%/1min (class 0.1);

Distortion: ≤0.1% (Non-capacitive load);

Output maximum load: ≥ 25mA

Accuracy: 0.1%RG (class 0.1);



AC current output

Range: phase A: 500uA, 2mA, 10mA, 50mA, 0.2A, 0.5A, 2A, 5A, 10A, 30A;

Phase B, C: 0.2A, 0.5A, 2A, 5A, 10A, 30A;

Adjustment range: (0~120) %RG, RG refers to range, similarly hereafter;

Adjustment resolution: 0.01%RG, 0.1%RG, 1%RG, 10%RG for option;

Stability: 0.005%/1min (0.05 class), 0.01%/1min (class 0.1);

Distortion: ≤0.1% (Non-capacitive load);

Output maximum load: 25VA each phase (resistive load);

Measurement accuracy: 200mA and above ranges: 0.05%RG (Class 0.05); 0.1%RG (Class 0.1);

                                    50mA and below ranges: 0.1%RG (Class 0.1);



Power output

Power output stability: 0.01%/2min (class 0.5), 0.02%/2min (class 0.1);

Active, reactive power measurement accuracy: 0.05%RG (class 0.5), 0.1%RG (class 0.1);



Phase angle output

Output adjustment range: 0°~360°;

Output adjustment resolution: 10°, 1°, 0.1°, or 0.01°.

Resolution: 0.01°;

Accuracy: 0.05°.



Power factor output

Adjustment range: -1 ~ 0 ~ +1;

Measurement resolution: 0.0001;

Accuracy: 0.0005;



Frequency output

Adjustment range: 40Hz ~70Hz;

Output adjustment resolution: 1Hz, 0.1Hz, 0.01Hz, 0.001Hz for option;

Resolution: 0.001Hz;

Accuracy: 0.001 Hz;



Harmonic setup

Harmonic order: 2nd ~63rd;

Harmonic amplitude: 0~40%;

Harmonic angle: 0°~359.99°;

Harmonic setup error: 2nd ~31st: ≤±0.1%; 32nd ~63rd≤±0.2%;



DC voltage output

Range (4 lines): 100mV, 300 mV, 1V, 5V, 20V, 100V, 300V, 1000V;

Adjustment range: (0~120) %RG; 1000V: (0~110) %RG;

Adjustment resolution: 0.01%RG, 0.1%RG, 1%RG, 10%RG;

Stability: 0.005%/1min (class 0.05), 0.01%/1min (class 0.1);

Ripple amplitude: ≤1%RG (Non-capacitive load);

Output load: 20V and above ranges: ≥10mA; 5V and below ranges: ≥25mA;

Accuracy: 0.05%RG (class 0.05), 0.1%RG (class 0.1);



DC current output

Range: 1mA, 3mA, 10mA, 30mA, 100mA, 300mA, 1A, 5A, 10A, 15A, 25A;

Adjustment range: (0~120) %RG;

Adjustment resolution: 0.01%RG, 0.1%RG, 1%RG, 10%RG;

Stability: 0.005%/1min (0.05 class), 0.01%/1min (class 0.1)

Ripple amplitude: ≤1%RG;

Output load: 25A: 25VA,other ranges ≥ 2V; 300mA and below ranges ≥25V;

Accuracy: 10mA and above ranges: 0.05%RG (class 0.05), 0.1%RG (class 0.1);

1mA, 3mA range: 0.1%RG;



Energy error measurement

Active energy basic error limit:

±0.05%RD (voltage 15V~660V, current 0.05A~36A,PF≥0.5);

±0.1%RD (voltage 15V~660V, current 0.02A~0.05A,PF=1);



Reactive energy basic error limit:

±0.1%RD (voltage 15V~660V, current 0.05A~36A,PF≥0.5);

±0.2%RD (voltage 15V~660V, current 0.02A~0.05A,PF=1);



General parameters

Power supply:          90~265VAC/DC

Frequency:             50Hz~60Hz

Consumption:          50VA~1000VA

Environment condition:  20℃~30℃,relative humidity≤85%

Storage environment:  -20℃~50℃

Size:                600mm (L) × 440mm (W) × 176mm (H)

Weight:              28Kg
