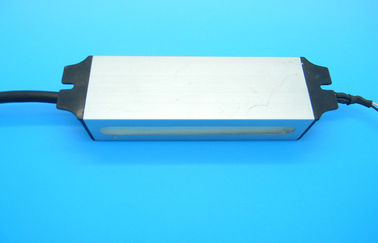

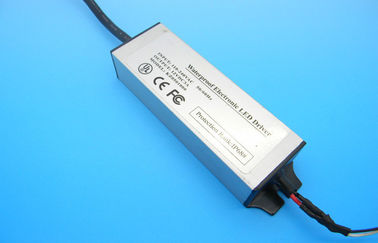

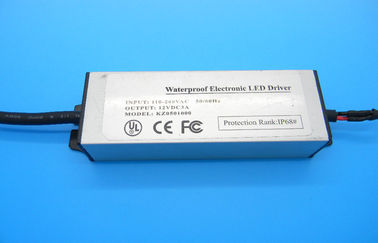

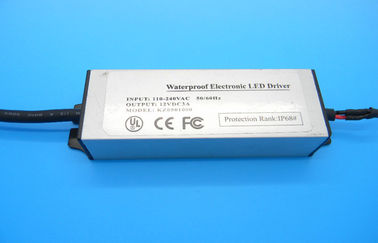

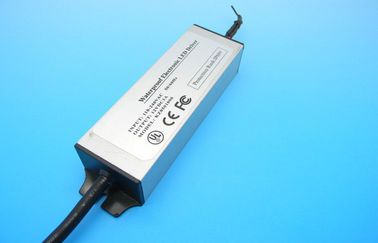

Short Circuit 12V DC Power Supply / IP68 LED Waterproof Driver For LED Tube

Short Circuit 12V DC Power Supply / IP68 LED Waterproof Driver For LED Tube

  • Short Circuit 12V DC Power Supply / IP68 LED Waterproof Driver For LED Tube
  • Short Circuit 12V DC Power Supply / IP68 LED Waterproof Driver For LED Tube
  • Short Circuit 12V DC Power Supply / IP68 LED Waterproof Driver For LED Tube
  • Short Circuit 12V DC Power Supply / IP68 LED Waterproof Driver For LED Tube
  • Short Circuit 12V DC Power Supply / IP68 LED Waterproof Driver For LED Tube
Short Circuit 12V DC Power Supply / IP68 LED Waterproof Driver For LED Tube
Product Details:
Place of Origin: Shenzhen,China
Brand Name: RAYTOP
Certification: CE, RoHS, FCC
Model Number: ETF1200300
Payment & Shipping Terms:
Minimum Order Quantity: 1K
Price: Negotiable
Packaging Details: White box/Master Carton
Delivery Time: 15-20 work days.
Payment Terms: T/T, L/C
Supply Ability: 200,000 Pcs monthly.
Contact Now
Detailed Product Description
Approval: CE, RoHS, FCC, UL EMI Standards: FCC Part 15B
Feature: IP68 Frequency: 50Hz / 60Hz
Input: AC100-240V Output: DC12V
Output Power: 36W, 6W Product Name: LED Waterproof Driver
Protection: Short Circuit, Over Voltage, Over Current
High Light:

cctv 12v power supply

,

12 volt power supply



Short Circuit 12V DC Power Supply / IP68 LED Waterproof Driver For LED Tube





Quick Detail:



Aluminum cased switching power supply, LED waterproof driver 36W. input voltage 100-240V, 47~63Hz,in conformity with CE, RoHS, FCC certification.





Specs:



Input: AC100-240V, 1.2A max.

Frequency: 47/63Hz

Output: DC12V, 3A

Water Resistance: IP68

Cable: 2X0.75mm2, 20cm length.

Inrush Current: Cold start current 60A at 240Vac.





Features:



- 2 years warranty

- High efficiency

- EMC standards PFC>0.95

- Full range 100~250VAC

- Protections: SCP, OPP, OVP, OTP, LDP

- IP68 design for indoor and outdoor application

- 100% burn-in tests, at full load

- Rated output can be customized





Approval: CE, RoHS, FCC

Warranty: 2 years





Description:



IP68 Waterproof LED driver for indoor and out door using, aluminum cased.





Note:



1)  Please calculate the output power correctly, and do not make it work under over load circumstance, avoid to touch the case when using.

2)  Avoid output short circuit, if no output, please repeat using it after 1 minute shut off.

3)  Please make sure correct wire connecting before using the power supply.





Applications:



1) LED accessories for Waterproof led flexible ribbon, led rigid bar, led strip lights etc.

2) This safety driver is good used with electronic equipment, IT equipment, small home appliance





Specifications:



Input

Rated Input Voltage

AC100~240V

Input Voltage Range

AC 90~264V

Rated Frequency

50/60 Hz

Input Frequency Range

47~63 Hz

Power Factor

>0.95

Input AC Current

300mA

Inrush Current

Cold start 20A at100Vac, 60A at 240Vac.

Output

Rated Output Voltage

DC12V±5%

Rated Output Current

3A

Rated Power

36W

Ripple and Noise

200mV p-p

Turn-on

50ms @ full load(typical)

Hold-up

20ms @ full load(typical)

Over Voltage Protection

Yes, 105%--150%

Over Current Protection

Yes, 130%-150%

Short Circuit Protection

Hiccup type, automatically recover after short circuit remove.

Reliability

Hi-pot

3750Vac

Leakage Current

5mA/240VAC



Withstanding Voltage

I/P-O/P,I/P-FG: 3.75KVAC,O/P-FG:1.75KVAC,1 min

Insulation Resistance

Input and output internal: Input and enclosure, Output and enclosure:500VDC/100MΩ 25°C/70% RH

EMI Standards

FCC Part 15B Class B

RoHS Compliant

Yes

MTBF

50,000 hours

Burn-in

40+/-5 ℃, full load, 4 hours

Environmental

Operating Temperature

-10~60℃

Operating Humidity

10~90%

Storage Temperature

-20~85℃

Storage Humidity

0~95%

Safety Approvals

CE, RoHS,FCC

Warranty

2 Years





Competitive Advantage:



- Open private model w/o extra cost for you;

- 0.3% free backup of order quantity;

- Direct factory price without middle man;

- High performance-to-price ratio;

- Perfect after-sale service.
