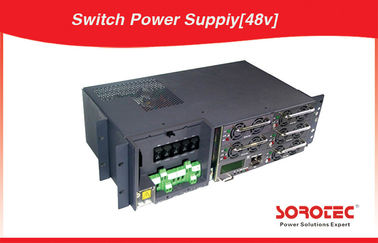

45-65HZ 48V DC Power Supply 90 - 285VAC Data Center Former Connection Wire Rectifier

45HZ - 65HZ 48V DC Power Supply Center Former Connection Wire Rectifier

AC Input:
Rated input voltage :220VAC

AC input Voltage range :90-285VAC

AC INPUT Frequency range :45-65HZ

Power factor : ≥0.98

Efficiency : ≥91%

DC output:
Rated voltage:48VDC

AC Voltage range: 42-58VDC

System current : 150A

Module:SR4810,SR4815,SR4820,SR4830

Monitoring Module :STM-1

Mode of connection:Former connection wire Rectifier

DC distribution: Battery fuse 80A×1;

load Distribution: 4 road load battery Distribution : 2 road battery

Safety characteristics:
Input ----output 3000vac/10mA//1min No arcing, no breakdown

Input---- chassis 2500Vac/10mA//1min No arcing, no breakdown

Input---- chassis 500Vac/10mA//1min No arcing, no breakdown

Environment:
Operating temperature :-40-+70°c

Humidity :≤ 95% non-condensing

Mechanical characteristic :
Dimensions(W.H.D): 482.6mm×255mm×130.5mm

Weight(Kg); 15kg (include rectifier module)
