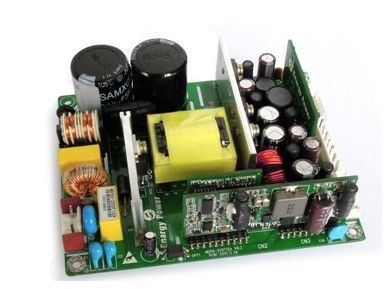

Medical Power Supply 50W Output  5V/2.5A,12V/2.5A,13.8V/0.4A MD50-220T12B





Key Features

AC input range: 90~420Vac

Li battery input range: 10~15Vdc

DC input voltage: 12V

riple outputs: 5V/2.5A,12V/2.5A,13.8V/0.4A

High efficiency:70%

Line regulation: ≤±1%

Load regulation: ≤±5%

Low ripple&noise:≤100mV

short circuit protection

Output over current protection

Output over voltage protection

Input under voltage lock-out

Over temperature protection

AC operation signal

Battery operation signal

Battery charging signal

Battery capacity signal

Soft On/Off function

Seamless switch between AC, battery and DC

Natural cool

RoHS compliant

UL94V-0 flame-retarded rating



Product Overview

This AC-DC converter use advanced power processing, control and packaging technologies to provide the performance, flexibility, reliability and cost effectiveness of a mature power component. High frequency switching provides high power density with low noise and high efficiency.



Electric Characteristics

Input Characteristics

Parameter

Min

Typ

Max

Units

Notes

Rated input voltage

100



240

Vac



AC input voltage range

90



420

Vac



Rated AC input frequency



50/60



Hz



AC input frequency range

47



63

Hz



Max. input current





1.5

A

Min input voltage, full load

Input inrush current





60

A

264 Vac input voltage, 25℃, first start

Battery input voltage

10



15

Vdc



DC input voltage range

10



15

Vdc



Efficiency

AC input

70





%

Rated input voltage, rated load

Battery and DC input

84





%

12Vdc input voltage,rated load



Output Characteristics

Parameter

Min

Typ

Max

Units

Notes

Output voltage range

5V

4.9

5

5.1

Vdc



12V

11.5

12

12.5

Vdc



Battery charging

13.5

13.7

13.9

Vdc



Output current range

5V

0



1.6

A



12V

0



2.5

A



Battery charging

0.35



0.45

A

Constant current mode

Line Regulation





±1

%



Load Regulation





±5

%



Ripple & noise

5V





100

mVp-p

Rated input,full load, 20 MHz bandwidth

12V





200

mV-p

Rated input,full load, 20 MHz bandwidth

Turn-on rise time





50

ms

Full load,10%~90% Vout

Output voltage overshoot





±5

%



Output Capacitance



3300



μF





Protection Characteristics

Parameter

Min

Typ

Max

Units

Notes

Output over current protection

5V

2.6



4.5

A



12V

3.0



4.5

A



Output over  protection

5V

5.5



7.5

V



12V

13.2



18

V



5V 12V Short – Circuit Protection





10

Hiccup

Battery under voltage  protection

10.2



10.8

V

5V and 12V shutdown



General Characteristics

Parameter

Min

Typ

Max

Units

Notes

MTBF

250





KHrs

Rated input, full load,25℃

Weight



280



g





Environmental Characteristics

Parameter

Min

Typ

Max

Units

Notes

Operating temperature

0



+50



Storage temperature

-20



+85



Relative humidity

20



90

%



Storage humidity

10



95

%



Altitude





3000

m



Cooling-down method









Natural cooling



Safety Characteristics

Parameter

Min

Typ

Max

Units

Notes

Isolation voltage

Input to output

4000





Vac

5mA/1min, No arcing and breakdown

Input to ground

2000





Vac

Output to ground

500





Vdc

5mA/1min, No arcing and breakdown

Isolation resistance

Input to output

30





500Vdc/1min, normal atmospheric pressure, 90% humidity

Leakage current

Input to ground





0.5

mA

264Vac,normal condition





1

mA

264Vac,single fault



Battery Management

Parameter

Min

Typ

Max

Units

Notes

Battery standby leakage current





0.5

mA

No AC input, OFF condition

Notes:

Seamless switch between AC and battery.12V and 5V won’t turn off during the switch.

The battery voltage lower than 1V won’t impact 12V,5V output if there’s AC input. Charging LED won’t light on.

The battery voltage corresponding to the battery capacity linearly. 11V corresponding to 1.2-1.8V, 11.5V corresponding to 1.7-2.3V, 12V corresponding to 2.2-2.8V, 12.5V corresponding to 2.7-3.3V



Signal and Switch

Item

Functions

Notes

AC input signal

Signal turn on when AC input,output high-level

Pin1 of connector J7, pin5 of connector J8

Battery supply signal

Battery supply turn on when AC input fail, output high-level

Pin4 of connector J7

Battery charging signal

Output high-level when battery charging, output low-level when battery is not loaded or fully charged

Pin3 of connector J7

Power soft ON/OFF switch

Connector J8,power startup when pin3 and pin2 is shorted, no 12V/5V fan output whenpin1 and GND is shorted

No self-lock switch, 300mS turn OFF  delay



EMC Characteristics

Item

Standards

Conditions

Notes

CE

EN55011

Class B

Pass system test

RE

EN55022

Class B

Pass system test

Harmonic

EN61000-3-2

C type lamps requirements

Criterion B

Voltage fluctuations and flicker

EN61000-3-3

Class A equipments requirements

Criterion B

Surge

EN61000-4-5

Differential mode ±2KV,common mode±4KV

Criterion B

DIP

EN61000-4-11

EN55024

Voltage dip to 0%Ut,10ms

Criterion B, test at phase 0, 90, 180 and 270

Voltage dip to 40%Ut, 20ms

Voltage dip to 70%Ut,50ms

ESD

Air discharge

EN61000-4-2

±8KV

Criterion B

Contact discharge

EN61000-4-2

±4KV

Criterion B

Notes:

Criterion A: Normal performance during and after test.

Criterion B: Low-voltage protection or reset is not allowed. Temporary output voltage fluctuation ceases after disturbances ceases, and from which the EUT recovers its normal performance automatically. During the system test, output voltage fluctuation or reset is not allowed too.

Criterion C: Temporary loss of output is allowed, but the hardware can’t be damaged. The EUT recovers its normal performance automatically or operator intervention.

Criterion R: Loss of output which is not recoverable is allowed. The primary protective component (fuse) can be damaged. The EUT recovers its normal performance after replace the damaged component.



Environmental Qualification

Parameter

Notes

Vibration

10-55Hz sweep, 1 min./sweep, 120 sweeps for 3 axis

Mechanical Shock

100g min, 2 drops in x and y axis, 1 drop in z axis

Cold(in operation)

IEC60068-2-1  Ad

Damp heat

IEC60068-2-67  Cy

Temperature Cycling

-40°C to 100°C, ramp 15°C/min., 500 cycles

Power/Thermal Cycling

Vin = min to max, full load, 100 cycles

Design Marginality

Tmin-10°C to Tmax+10°C, 5°C steps, Vin = min to max, 0-105% load

Life Test

95% rated Vin and load, units at derating point, 1000 hours

Solder ability

IEC60068-2-20



Standards compliance

Standards

Notes

UL/cUL60950



EN60950



GB4943



IEC 695-2-2

Needle flame test, test on entire assembly, board&plastic components UL94V-0 compliant

IEC 61000-4-2





Mechanical Outline

Length×width×heigth:125.0×100×35.0(mm)

Medical ac to dc voltage converter 5V / 2.5A ,12V / 2.5A ,13.8V / 0.4A MD50-220T12B 0

Connector designations

J1: Connector type areVH3.96-3(fast back)            J2:Connector type areVH3.96-2(fast back)

Com number

Description

Pin number

Function

J1

AC input connector

1

L

2

NC

3

N

Com  number

Description

Pin  number

Function

J2

DC input connector

1

DC-

2

DC+

J5:Battery input connector J5 are VH3.96-2(fast back)

Com number

Description

Pin number

Function

J5

Battery input connector

1

BAT-

2

BAT+

J4: Output connector J4 are VH3.96-7(fast back)

Com number

Description

Pin number

Function

J4

Output connector

1

NC

2

+12V

3

+12V

4

GND

5

GND

6

+5V

7

+5V

J6: Fan connector J6 is XH2.54-2

Com number

Description

Pin number

Function

J6

Fan connector

1

+12V

2

GND

Note: J6 will output only when AC input ok and switch on condition.



J7: Signal indication connector J7 is XH2.54-4

Com number

Description

Pin number

Function

Notes

J7

Signal indication connector

1

AC input terminal

Output +5V when AC input is ok, 0V when no AC input

2

GND



3

Charging terminal

Output+5V when battery is charging;0V when battery fully charged or not charging

4

Battery terminal

Output +5V when using battery, 0V when no AC input,  battery supply

Note: The current of signal LED is 2~5mA. AC light turn on when AC input is ok. Battery light turn on when battery supply and no AC input. AC light and battery light can’t be turned on in the same time. The output voltage and impedance of the LED are 5V and 510Ω



J8:Control connector J8 is XH2.54-6

Com number

Description

Pin number

Function

Notes

J8

Control  connector

1

Turn OFF signal

Low-level effective, no 12V/5V fan output whenpin1 and GND is shorted, 300mS turn OFF  delay

2

Power switch-

Power startup when pin3 and pin2 is shorted, no self-lock switch

3

Power switch+

4

GND



5

AC signal

Output 5V when AC online, 0V when no AC, output voltage and impedance are +5V and 510Ω

6

Battery capacity detection

Output analog voltage 0~5V linearly corresponding to battery voltage 9.5~14.5V, 1.5V corresponding to 11V,  2.0V corresponding to 11.5V, 2.5V corresponding to 12V, 3.0V  corresponding to 12.5V, the tolerance ≤±0.3V
