Gaoxin Industrial Park,Guangming New Zone,Shenzhen City, Guangdong Province, China | Angelwang66@126.com |
Place of Origin: | China |
Brand Name: | STARWELL |
Certification: | UL,CE,ROHS, FCC,GS,SAA,C-TICK |
Model Number: | SW-00120500-S10 |
Minimum Order Quantity: | 100pcs |
---|---|
Price: | negotiation |
Packaging Details: | Carton box |
Delivery Time: | 10-15 days |
Payment Terms: | Ex works |
Supply Ability: | 1, 000, 000PCS/week |
High Light: | Desktop External Power Supply,Desktop Switching Power Supply |
---|

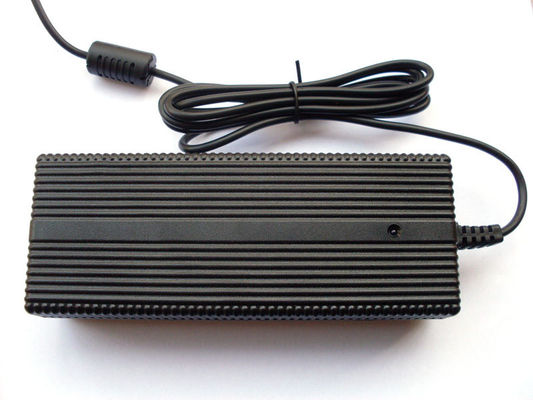

EN60950-1 DC 19V 3.42A 65W AC Power Adapter UL FCC GS CE SAA C-TICK
Feature:
> input voltage range: 100~240VAC
> output: 19V 3.42A
> Effiency: 85% minimum
> Ripple and Noise: 80mV maximum
> Color: Black or white
> Dc cable length: 1.5 meters
> DC jack: 5.5*2.1*10mm
> Net Weight: 250g
> Dimension:110(H)*51.5(W)*33.5(H)mm
> AC inlet: C8, C6, C14 optional
> Safety protection: over load, over voltage, short ciruict, open load protection.
Specifications
Input Rated Voltage : |
100Vac~240Vac |
Input Frequency Range: |
47Hz~63Hz |
Input Inrush Current : |
0.8A max |
Efficiency : |
85%(MIN)at Rated Voltage |
Output: |
19V 3.42A |
Output power : |
65W |
Ripple and Noise : |
<150Mv at full road with 20MHz bandwidth |
Turn On Delay Time: |
<3S (AC:110V and full load) |
Safety protection : |
over voltage and current protection. |
Leakage Current: |
<5mA |
USB connector: |
5.5*2.1*10mm |
Operating Temperature: |
0°C----+60°C |
Storage Temperature: |
-20°C----+85°C |
Certificate: |
CE GS TUV UL/CUL FCC ROHS,SAA,PSE,C-TICK |
Safety Standard : |
EN60950-1 UL60950-1 ESD (EN61000 3-3) |
MODEL LIST:
12~18W DESKTOP SERIES | |||||
Model | Input Voltage | Power | Output Voltage | Output Current | AC Inlet Type |
SW-00090100-S10 | 100-240V AC | 9W | 9V | 1A | C8 |
SW-00090150-S10 | 100-240V AC | 24W | 9V | 1.5A | C8 |
SW-00090200-S10 | 100-240V AC | 24W | 9V | 2A | C8 |
SW-00120100-S10 | 100-240V AC | 27W | 12V | 1A | C8 |
SW-00120150-S10 | 100-240V AC | 30W | 12V | 1.5A | C8 |
SW-00XXXYYY-S10 | SW-00XXXYYY-S10 ( XXX=090-240 means output voltage is 9- | ||||
24V, YYY=001-600, means the output current is 0.01A-6A) . | |||||
UL number: E352029 |
24W~36W DESKTOP SERIES | |||||
Model | Input Voltage | Power | Output Voltage | Output Current | AC Inlet Type |
SW-00240200-S10 | 100-240V AC | 24W | 12V | 2A | C8,C6,C14 |
SW-00150160-S10 | 100-240V AC | 24W | 15V | 1.6A | C8,C6,C14 |
SW-00240100-S10 | 100-240V AC | 24W | 24V | 1A | C8,C6,C14 |
SW-00090300-S10 | 100-240V AC | 27W | 9V | 3A | C8,C6,C14 |
SW-00240125-S10 | 100-240V AC | 30W | 24V | 1.25A | C8,C6,C14 |
SW-00300100-S10 | 100-240V AC | 30W | 30V | 1A | C8,C6,C14 |
SW-00XXXYYY-S10 | SW-00XXXYYY-S10 ( XXX=090-240 means output voltage is 9- | ||||
24V, YYY=001-600, means the output current is 0.01A-6A) . | |||||
UL number: E352029 |
36W~65W SERIES |
|||||
Model |
Input Voltage |
Power |
Output Voltage |
Output Current |
AC Inlet |
SW-00090400-S10 |
100-240V AC |
36W |
9V |
4A |
C8,C6,C14 |
SW-00090500-S10 |
100-240V AC |
45W |
9V |
5A |
C8,C6,C14 |
SW-00090600-S10 |
100-240V AC |
54W |
9V |
6A |
C8,C6,C14 |
SW-00120300-S10 |
100-240V AC |
36W |
12V |
3A |
C8,C6,C14 |
SW-00120400-S10 |
100-240V AC |
48W |
12V |
4A |
C8,C6,C14 |
SW-00120500-S10 |
100-240V AC |
60W |
12V |
5A |
C8,C6,C14 |
SW-00150300-S10 |
100-240V AC |
45W |
15V |
3A |
C8,C6,C14 |
SW-00150400-S10 |
100-240V AC |
60W |
15V |
4A |
C8,C6,C14 |
SW-00190200-S10 |
100-240V AC |
38W |
19V |
2A |
C8,C6,C14 |
SW-00190300-S10 |
100-240V AC |
48W |
19V |
3A |
C8,C6,C14 |
SW-00190316-S10 |
100-240V AC |
60W |
19V |
3.16A |
C8,C6,C14 |
SW-00190342-S10 |
100-240V AC |
65W |
19V |
3.42A |
C8,C6,C14 |
SW-00240200-S10 |
100-240V AC |
48W |
24V |
2A |
C8,C6,C14 |
SW-00240250-S10 |
100-240V AC |
60W |
24V |
2.5A |
C8,C6,C14 |
SW-00XXXYYY-S10 |
SW-00XXXYYY-S10 ( XXX=090-240 means the output voltage is 9- |
||||
24V, YYY=001-600, means the output current is 0.01A-6A) . |
|||||
UL number: E352029 |
72W~96W SERIES | |||||
Model | Input Voltage | Power | Output Voltage | Output Current | AC Inlet |
SW-00120600-S10 | 100-240V AC | 72W | 12V | 6A | C8,C6,C14 |
SW-00120700-S10 | 100-240V AC | 84W | 12V | 7A | C8,C6,C14 |
SW-00240300-S10 | 100-240V AC | 72W | 24V | 3A | C8,C6,C14 |
SW-00240400-S10 | 100-240V AC | 96W | 24V | 4A | C8,C6,C14 |
SW-00XXXYYY-S10 | SW-00XXXYYY-S10 ( XXX=090-240 meansoutput voltage is 9- | ||||
24V, YYY=001-600, means the output current is 0.01A-6A) . | |||||
UL number: E352029 |
96~120W SERIES | |||||
Model | Input Voltage | Power | Output Voltage | Output Current | AC Inlet |
SW-00120800-S10 | 100-240V AC | 960W | 12V | 8A | C8,C6,C14 |
SW-00120830-S10 | 100-240V AC | 100W | 12V | 8.3A | C8,C6,C14 |
SW-00240500-S10 | 100-240V AC | 120W | 24V | 5A | C8,C6,C14 |
SW-00300300-S10 | 100-240V AC | 120W | 30V | 4A | C8,C6,C14 |
SW-00XXXYYY-S10 | SW-00XXXYYY-S10 ( XXX=090-240 means output voltage is 9- | ||||
24V, YYY=001-600, means the output current is 0.01A-6A) . | |||||
UL number: E352029 |
DRAWING:
EMC Standards & Safety Standards / EMC Standards
GB9254 |
GB17625.1 |
GB13837 |
FCC- Part15 |
EN 55022 |
EN55024 |
CISPR 22 |
EN 61000-4-4 |
EN 61000-3-2 |
EN 61000-3-3 |
EN 61000-4-2 |
EN 61000-4-3 |
EN 61000-4-5 |
EN 61000-4-6 |
EN 61000-4-8 |
EN 61000-4-11 |
Type |
Country |
Standard |
Type |
Country |
Standard |
CCC |
China |
GB4943 |
CE |
Europe |
EN60950-1 |
CCC |
China |
GB8898 |
CB |
CB |
IEC60950 |
UL/CUL |
USA |
UL60950-1 |
C-TICK |
Australia |
AS/NZ60950 |
KC |
Korea |
KC60950 |
GS/TUV |
German |
EN60950 |
Applications:
For laptop pc, computer, LCD Moniter power supply, CCTV power supply, electronic device power supply etc….
Instructions:
- The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids,
such as vases, shall be placed on the apparatus.
- The mains plug is used as the disconnect device, the disconnect device shall be readily operable.
- The socket-outlet shall be installed near the equipment and shall be easily accessible.
- No naked flame source, such as lighted candles, should be placed on the apparatus.
- Maximum operating ambient for the equipment is 40℃.
- The apparatus should not be used in a confined space such as a bookcase.
- This appliance is not intended for use by persons (including children) with reduced physical,
sensory, or mental capacities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their Safety.
- Children should be supervised to ensure that they do not play with the appliance.
Package information :
1. carton box dimension: 480*450*180mm
2. QTY: 50 pcs/carton
3. G.W: 11.5 KG
