Product Details:
Place of Origin: CHINA
Brand Name: INCTEL
Certification: CE/ FCC/ ROHS
Model Number: IN-I7B
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: color box
Delivery Time: within 5 business days
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 10,000 pcs/ month
Contact Now
Detailed Product Description
Is_Customized: Yes Graphics Card Type: Integrated Card
Processor Main Frequency: 1.8Ghz Processor Model: I7-4500U 4650U
Operating System: Windows (OEM) Or Linux Consumption: 15W-28W
High Light:

core i7 computer

,

inter core i7



Silent I7 Mini PC with Haswell Intel Core i7-4500U 1.8Ghz Desktop Computer





Quick Details:



The fourth-generation i7

Haswell Architecture,Dual core four threads



Mini PC Rear I/O:

DC 12V
HDMI
DP
Gigabit LAN
USB 2.0*2
USB 3.0*4
MIC Input
SPK Output
 Fanless


System:



4G RAM, 64G SSD

(SSD for System, HDD for Storage)



If customer buy the configuration with RAM, SSD, HDD, We can install as belows,

XP/windows 7/Ubuntu Linux optional(if not leave message, we will ship at Random.)

Charged WIN.8 add extra $5, Server 2003 add extra $5

Above OS is OEM cracked Version, if need orginal, needs to purchase separately

Original Windows, please buy it locally!

For bulk orders/Bid Goverment orders, we can supply original embeded windows. (MOQ:10 Sets,inquiry our pre-sales)Silent I7 Mini PC with Haswell Intel Core i7-4500U 1.8Ghz 4 Desktop Computer 0


Specification:

Model IN-I7B
CPU Intel Core i7 4500U 4650U 4600U 1.8Ghz Dual Core Four Threads,we will ship randomly per the stock.
GPU Haswell/The fourth-generation i7 L3 4MB Cache Intel HD 4400-5000 Graphics
RAM Support  Dual Channel NB Memory SO-DIMM DDR3L (Maximum to 16G RAM, 2*8G)
Storage Support 1*Mini PCIE Msata SSD+1* 2.5" HDD/SSD (SSD Max.512G, HDD Max. 1.5TB)
Wi-Fi Dual Band Wireless-(150Mbps or 300Mbps optional)
Package

Mini PC+Power Supply+Power Cord (USA, European, UK Types for optional)+PC Stand





Upgrade Service:



1. WiFi Optional, if need wifi,(150Mbps) double antenna builtin wireless add extra $8, (300Mbps) add $10. Choose one from 150M and 300M.

2. 1* COM Port: $5

3. IR Infrared module+ Remote Control (not with battery) add $14

4. USB Bluray DVD add $48, Normal DVD add $28

5. 2.4G Air mini Keyboard and Mouse add $18 (choose one type)

6. More configuration about lower or higher RAM, HDD, SSD Options, please refer to our big directory or contact our pre-sales for guide.

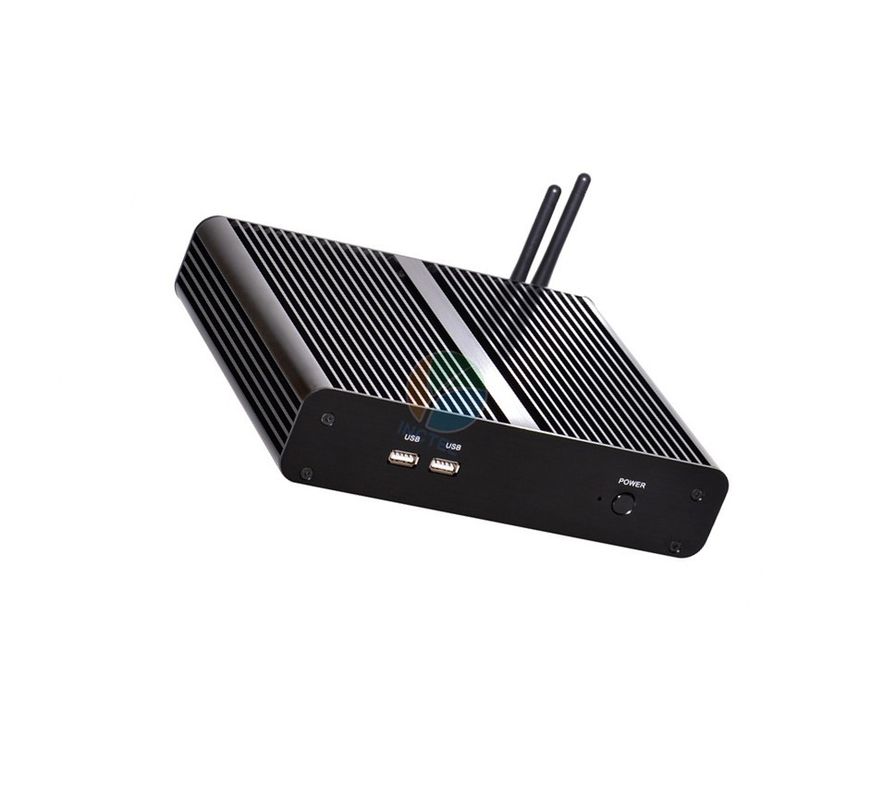

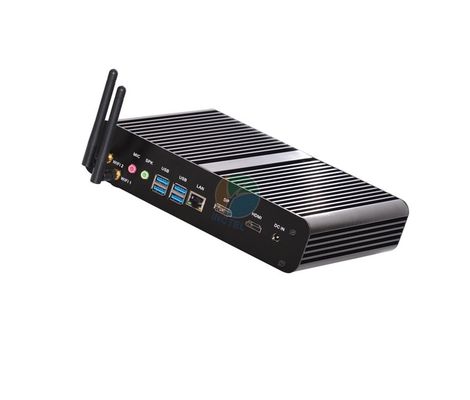

Ref. Photo as belows,

Silent I7 Mini PC with Haswell Intel Core i7-4500U 1.8Ghz 4 Desktop Computer 1





Detailed Description:

Model IN-I7B i7 4500U
General
CPU Onboard Intel Core i7-4500U 1.86Ghz
Dual Core Four Thread Max 3.0MHz(Turbo boost Technology) processor
Core(FSB) 100MHz
L3 Cache 4MB, CPU integrated
BIOS AMI BIOS, ACPI supported
Support calls on function automatically
Support Wake-On-LAN
Chipset Intel SHARKBAY(Intel Haswell-ULT)
RAM 2* SO-DIMM DDR3 Slot
Support 2GB/4GB/8GB/16GB
Storage SSD: 8G/16G/32G/64G/128G/256G/512G
HDD: 80G/160G/320G/500G/640G/750G/1TB
Operating System Windows (OEM) or Linux
Audio AL662 chip, 6 channel sound
Intel Lynx Point-LP H D A
Network Onboard Redlrik RTL8168E PCI-E Gigabit Ethernet NIC
Onboard RTL8111DL10/100mbps/1000mbps BaseT Lan
Video  Intel Haswell-ULT Integrated Graphics Controller
Intel HD Graphics 4400(200~1100MHz)
Support DirectX11
Support HDMI full screen HD Playback
Support 4K HD DP Interface
Support 3D Blu-ray
I/O Port
Front Panel Ports 1* Power indicator and switch
2*USB 2.0
Backside Ports 1*DC IN
1*HDMI
1*DP Port
4*USB 3.0 Port
1*LAN Port(RJ45)
1*MIC
1*SPK
Internal Ports 1*M-SATA 3.0 Ports, support 6Gb/s
2*SATA 3.0 Port, support 6Gb/s
1* Mini- PCIE port(WiFi)
1*Mini- PCIE port(SSD)
Product Dimension&Details
Input DC100-240V  AC/50-60Hz
Output DC 12V~19V/5A
Operating Temperature 0/70 Centigrade( 32F~140F)
Energy-saving Support Energy-saving technology, SpeedStep
64 bit computing Support 64 bit computing
Virtualization Support Virtualization Technology
Hyper-threading Support Hyper-Threading
Size 185*220*40MM
Weight 2-2.5KGS
Consumption 15W-28W
Shell Black aluminum alloy
Package Aparts Power Adapter, a Stand Holder, WiFi antena(Optional)



Application:



1. a.Work as Desktop Computer, support all Windows and Linux...

    b. Work as thin client Mode, support all windows & Linux...



2. a. Fit for Touch Screen, Hotel, Internet Cafe, School, POS...

    b. Applied in multi media, embeded system, industry, home living room, firewall security...


3. a. For Interactive Whiteboard, 24/365 days work; HDMP 1080P...
    b. HQ for big govermant bid, project orders...


Power Supply:


About Power Cord:

We will ship the type of power cord, based on your area.



Silent I7 Mini PC with Haswell Intel Core i7-4500U 1.8Ghz 4 Desktop Computer 2


Gallery

Silent I7 Mini PC with Haswell Intel Core i7-4500U 1.8Ghz 4 Desktop Computer 3Silent I7 Mini PC with Haswell Intel Core i7-4500U 1.8Ghz 4 Desktop Computer 4


Shipping Term:



Nommally we ship via DHL, UPS, FEDEX, and EMS, HK Post, there are some explanation,


Flexible shipping cases as belows,



Case 1: Your shipping area is remote location for DHL. You could find out if your area is remote area or not on DHL the website:  raslist.dhl.com/jsp/first.jsp



Case 2: DHL is not allow to use in your area. Like Brazil, AR, Russian ,Kazakhstan. (So we ship via EMS or HK Post)



Case 3: If UPS or DHL are both appliable for your area , we will send it at randomly.
Good news for Russian customers, though DHL, UPS, Fedex etc express are unavailable to deliver to Russia in our area, we choose eEMS(EMS upraded version) to ship parcel by default, safe, fast, with better ability of customs clearance(Russia Customs is strictest in the world). Delivery within about 5-10 working days by e-EMS.



Case 4, Via HK post (mostly Spain prefer by HK post)



Except all of 4 cases, If your address is remote area for us, you should add extra shipping fees for DHL/ UPS/EMS/Fedex etc(welcome to consult our Pre-sales).



Above All, if our dear customer have its own ideas on the shipping method and declared value request, please leave message on the order, or consult our pre-sales.
