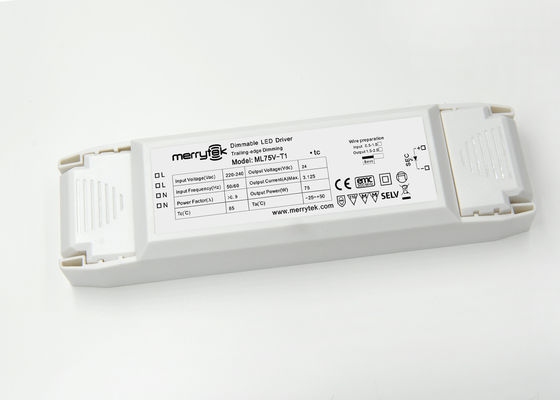

Name: Non - flicker Dimmable 24V Constant Voltage LED Driver 75W LED Strip Light Driver
Brand: Shenzhen YONP Power Co.,Ltd
SKU: ML75V-T1
Availability: InStock

Home Products Constant Voltage Led Driver

Non - flicker Dimmable 24V Constant Voltage LED Driver 75W LED Strip Light Driver

Product Details:

Place of Origin:	China
Brand Name:	Merrytek
Certification:	CE
Model Number:	ML75V-T1

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	Negotiation
Packaging Details:	Packed in bubble bag firstly, and then reinforced with carton for outer packing
Delivery Time:	1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Supply Ability:	10,000pcs per month

Contact Now

Detailed Product Description

Input Voltage:	220-240Vac	Product Name:	Dimmable LED Driver
Dimming Mode:	Trailing Edge Dimming	Output Load:	1*75W Max
Working Temperature:	-25℃-50℃	Output Current:	3.125A Max.
Isolation Class:	Class II, SELV	Output Voltage:	24Vdc
Approvals:	CE	Protection Class:	IP20
Highlight:	led dimming driver , led dimmer driver

Non - flicker 24V Constant Voltage LED Driver LED Strip Light Driver

Description:

1. Ml75V-T1 with 75w Max output

2. Special for use of trailing edge dimmer

2. Compatible with dimmer: Scandinavia market- Schneider SBD615RC; Deutsch market- JUNG 225 T; DEBERKE 2874; BUSCH 6513 U-102; GIRA 0307 00

3. Serve for constant voltage 24Vdc luminaires.

4. Output voltage:12Vdc

5, Protection: Short circuit / Over voltage / Over temperature.

6, Dimming range: 10%-100%

7. Two L,Two N,easy for synchronization function

Specifications

Input	Input voltage	220-240Vac, 50/60Hz
	Power factor (PF)	≥0.9(@ 240Vac input, full load and without dimmer)
	Efficiency	≥82%(@ 240Vac input, full load and without dimmer)
	No-load power	≤1.5W
Output	Output Voltage	24V DC
	Output Current	3.125A max.
	Voltage accuracy	±5%
	Rated power	75W Max.
Dimming	Dimming mode	Trailing edge dimming
Dimming	Dimming range	10%-100%
Environment	Working temperature	-25℃~50℃
Environment	Storage temperature	-40℃~80℃
Safety and EMC	Insulation class	Class II, SELV
	Withstand voltage	Input-Output: 3.7kVac/5mA/1min
	EMC	Compliance to EN55015, EN61000-3-2 Class C, EN61000-3-3, EN61547
	Safety	Compliance to EN61347-1, EN61347-2-13
Protection	Short circuit	Protection mode: Auto recovery
Protection	Over temperature	Protection mode: Auto recovery
Others	Dimension	220x58x40mm
	Enclosure	Plastic, white
	IP rating	IP20
	Connection	Input: 4-hole press-in type terminal(L, L, N, N) Output: Screw terminal block (LED +, LED -)
	Life time	30,000h
	Certification	CE
