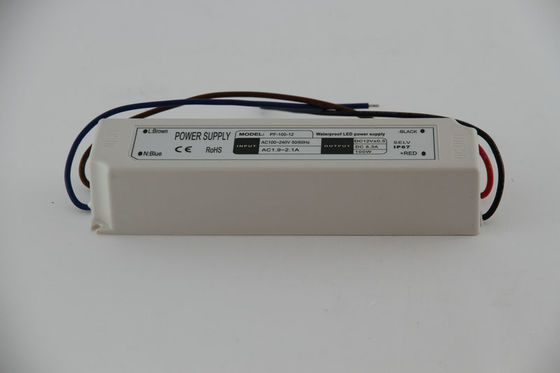

Portable 24 Volt Compact Constant Voltage LED Driver 100W , Outdoor LED Driver

Product Details:

Place of Origin:	China
Brand Name:	DongDaHua
Certification:	CE,RoHS
Model Number:	PF-100-12

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	/
Packaging Details:	as for your requirement
Delivery Time:	as per your order quantity
Payment Terms:	TT,paypal
Supply Ability:	4000pcs/Day

Contact Now

Detailed Product Description

Product Name:	Constant Voltage LED Driver	DC Output Power:	100W
DC Output Voltage:	12V 24V	Input Voltage Range:	110-240V AC
Waterproof Grade:	IP67	Input Frequency Range:	47Hz~63Hz
High Light:	12 volt led driver , constant voltage led drivers

100W 24V Constant Voltage LED Driver Efficiency Overload Protections

Features:

* constant voltage design
* Universal AC input/Full range
* Withstand 300VAC surge input for 5 seconds
* Epoxy encapsulated with IP67 level
* Protections:Short circuit/Overload/Over voltage
* Cooling by free air convection
* Small and compact size
* Fully isolated plastic case
* Suitable for LED lighting and moving sign applications
* 100% full load burn-in test
* Low cost,high reliability
* 2 years warranty

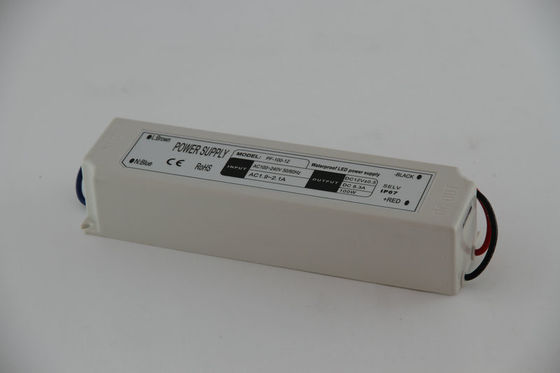

Portable 24 Volt Compact Constant Voltage LED Driver 100W , Outdoor LED Driver

Descriptions:

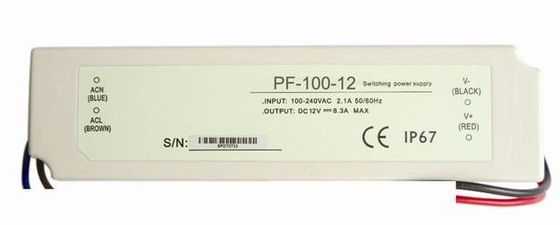

Parameter	Model:PF-100-12
DC output voltage	12V±5%	24V±5%
Rated output current	8.3A	4.15A
Output current range	0-8.3A	0-4.15A
Ripple and noise	120mVp-p
DC output power	100W	100W
Efficiency	85%	85%
Input voltage range	110-240V AC
Short-circuit protection	Damage free short-circuit protection 3 times or more with automatic restoration
Overload protection	105-150% hiccup with automatic restoration
Temp.coefficient	±0.03%℃ ( 0-40℃ )
Voltage tolerance	Input- output range: 1.5KvAC
Working environmental temp.	-10℃~+40℃
Waterproof grade	IP67
Input frequency range	47Hz~63Hz
Storage temperature	-20℃~+85℃
Dimension	1005238 mm
weight	0.58 kg

Application:

It’s suitable for an extremely wide range of applications, including:
LED, CCTV camera;
Communications and security products;
LED Strip Lighting/ LED lamp / LED Light, LED / LCD display.
