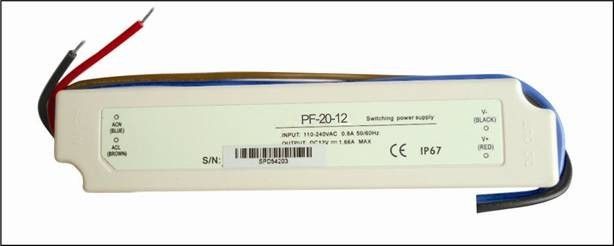

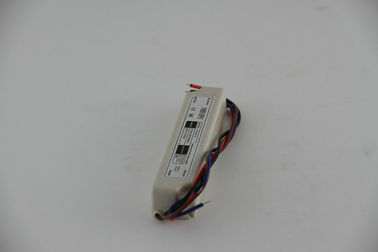

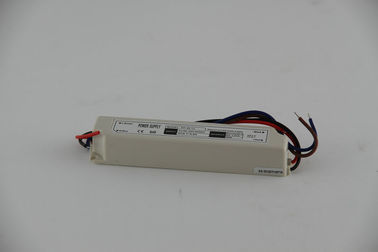

High Brightness 12V 20W Constant Voltage LED Driver Waterproof With Universal AC

High Brightness 12V 20W Constant Voltage LED Driver Waterproof With Universal AC

  • High Brightness 12V 20W Constant Voltage LED Driver Waterproof With Universal AC
  • High Brightness 12V 20W Constant Voltage LED Driver Waterproof With Universal AC
  • High Brightness 12V 20W Constant Voltage LED Driver Waterproof With Universal AC
  • High Brightness 12V 20W Constant Voltage LED Driver Waterproof With Universal AC
  • High Brightness 12V 20W Constant Voltage LED Driver Waterproof With Universal AC
High Brightness 12V 20W Constant Voltage LED Driver Waterproof With Universal AC
Product Details:
Place of Origin: China
Brand Name: DongDaHua
Certification: CE,RoHS
Model Number: PF-20-12
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: /
Packaging Details: as for your requirement
Delivery Time: as per your order quantity
Payment Terms: TT,paypal
Supply Ability: 4000pcs/Day
Contact Now
Detailed Product Description
Product Name: Constant Voltage LED Driver DC Output Power: 20W
Input Voltage Range: 110-240V AC Waterproof Grade: IP67
Input Frequency Range: 47Hz~63Hz DC Output Voltage: 12V 24V
High Light:

waterproof led driver

,

constant voltage led drivers

High Brightness 12V Constant Voltage LED Driver 20W Waterproof



Quick detail:

Power: 20W

Input: AC110-264V

Output: DC 12V 24V

Size: 139*30*22

Certificate: CE&ROHS

Warranty: 2 years



Description:

1. Protections :Short circuit/Overload/Over temperature

2. Cooling by free air convection

3. IP67 design for indoor or outdoor installations

4. 100% full load burn-in test

5. Suitable for LED lighting

6. Products through CE& ROHS certification



Descriptions:

Parameter

Model: PF-20

DC output voltage

12V±5%

24V±5%

Rated output current

1.66A

0.83A

Output current range

0-1.66A

0-0.83A

Ripple and Noise

120mVp-p



DC output power

20W

202

Efficiency

85%

85%

Input voltage range

110-240V AC

Short-circuit protection

Damage free short-circuit protection 3 times or more with automatic restoration

Overload protection

105-150% hiccup with automatic restoration

Temp.coefficient

±0.03%℃ ( 0-40℃ )

Voltage tolerance

Input-output range: 1.5KvAC

Working environmental temp.

-10℃~+40℃

Waterproof grade

IP67

Input frequency range

47Hz~63Hz

Storage temperature

-20℃~+85℃

Dimension

139*30*22mm

weight

0.16 kg



Features:

1. Constant voltage design

2. Universal AC input/Full range

3. Withstand 300VAC surge input for 5 seconds

4. Epoxy encapsulated with IP67 level

5. Protections:Short circuit/Overload/Over voltage

6. Cooling by free air convection

7. Small and compact size

8. Fully isolated plastic case

9. Suitable for LED lighting and moving sign applications

10. 100% full load burn-in test

11. Low cost,high reliability

12.  2 years warranty



300 VAC 3A 36W Constant Voltage Waterproof LED Driver Full Range For CCTV Camera



Application:

It’s suitable for an extremely wide range of applications, including:
LED, CCTV camera;
Communications and security products;
LED Strip Lighting/ LED lamp / LED Light, LED / LCD display.



High Brightness 12V 20W Constant Voltage LED Driver Waterproof With Universal AC 0



Quality assurance:

High Brightness 12V 20W Constant Voltage LED Driver Waterproof With Universal AC 1

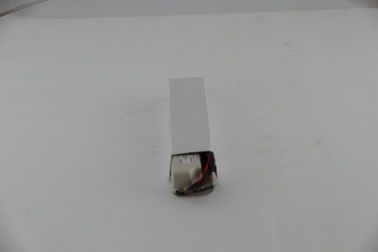

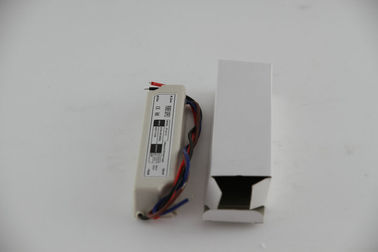

Delivery:


High Brightness 12V 20W Constant Voltage LED Driver Waterproof With Universal AC 2
