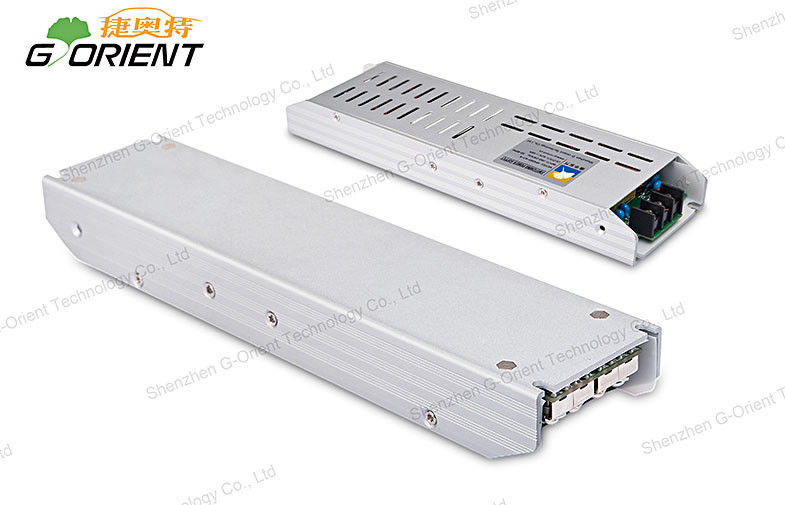

4.5V 60A 270W LED Switching Power Supply for LED Microdist TV Size 242 * 58 * 29mm

4.5V 60A 270W LED Switching Power Supply for LED Microdist TV Size 242 * 58 * 29mm

  • 4.5V 60A 270W LED Switching Power Supply for LED Microdist TV Size 242 * 58 * 29mm
4.5V 60A 270W LED Switching Power Supply for LED Microdist TV Size 242 * 58 * 29mm
Product Details:
Place of Origin: China
Brand Name: G-ORIENT
Certification: ISO9001 / CE / ROHS / FCC
Model Number: NHP300-4.5-A
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: negotiable
Packaging Details: 20pcs/16Kgs / CARTONS
Delivery Time: 10 working days after received your payment
Payment Terms: T/T, Paypal, L/C, Western Union
Supply Ability: 50,000pcs per month
Contact Now
Detailed Product Description
Output Power: 270W Ripple & Noise: ≤200mVp-p
Operating Temperature: -40℃ ~ +60℃ Application: LED TV
Standard: CE / ROHS / FCC Input: 100-240V AC
Output: 4.5V DC / 60A High Efficiency: 90%
High Light:

adjustable switching power supply

,

switched mode power supply



4.5V 60A 270W LED Switching Power Supply for LED Microdist TV Size 242*58*29mm


Features:
* Synchronous rectification,high power factor>0.95
* High efficiency up to 90%
* Low output ripple and noise,high reliability
* With over-current/over-voltage/short-circuit/over-power protection
* Ultra-low start up temperature -40℃
* 2 years warranty


Company Advantage:
* Cheap wholesale price
* High quality products
* Short lead time
* Professional R&D team
* Standardized production process
* Best after sale service


Specifications:

Switching power supply

 NHP300-4.5-A

 OUTPUT

DC Voltage

 4.5V

Current Range

 0~60A

Rated Current

 60A

Rated Power

 270W

Ripple & Noise(max.)

 <200mVp-p

Regulation

 ≦+/-3%

Leakage current

 ≦3.5mA

 INPUT

Voltage Range

 100-240V AC

Frequency Range

 47-63Hz

Efficiency(Typ.)

 90%

 Environment

Storage Temperature

 -40 ~ +85℃

Operaing Temperature

 -40 ~ +80℃

Relative Humidity

 10%-95%

Cooling

 Natural convection

 Safety

Safety standards

 CE

 Withstand Voltage

Input-output withstand vol.

 3000Vac/10mA/1min

Input-FG withstand vol.

 1500Vac/10mA/1min

Output-FG withstand vol.

 500Vac/10mA/1min

 Others

Dimension

 242*58*29mm (L*W*H)

Packing






Applications:
1. Electrical equipment, Instrumentation;
2. Digital and electronic products;
3. Advisement player
4. LED display,LCD TV, LED TV
5. Display screen,LED video wall
6. Communications and security products.


Competitive Advantage:
* Ultra-thin 29mm
* High efficiency up to 90%
* Low output ripple and noise
* Output over-current,short-circuit,over-load,over-voltage protection
* Synchronous rectification+PFC
* Ultra-low start up temperature-40℃
* CE / ROHS / FCC approval
