Gaoxin Industrial Park,Guangming New Zone,Shenzhen City, Guangdong Province, China | Angelwang66@126.com |
Place of Origin: | China |
Brand Name: | G-ORIENT |
Certification: | ISO9001 / CE / ROHS / FCC |
Model Number: | NHI300-5-A |
Minimum Order Quantity: | 10pcs |
---|---|
Price: | negotiable |
Packaging Details: | 20pcs/20Kgs / CARTONS,Carton Size:31*21*24cm |
Delivery Time: | 10 - 15 working days after received your payment |
Payment Terms: | T/T, Paypal, Western Union, L/C |
Supply Ability: | 50,000pcs per month |
Output Power: | 300W | Output: | 5V DC / 60A |
---|---|---|---|
Operating Temperature: | -40℃ ~ +60℃ | Output Type: | Single |
Input: | 200-240V AC | Size: | 196*110*30mm |
High Efficiency: | 85% | Standard: | CE / ROHS / FCC |
High Light: | led light power supply,led power supplies |

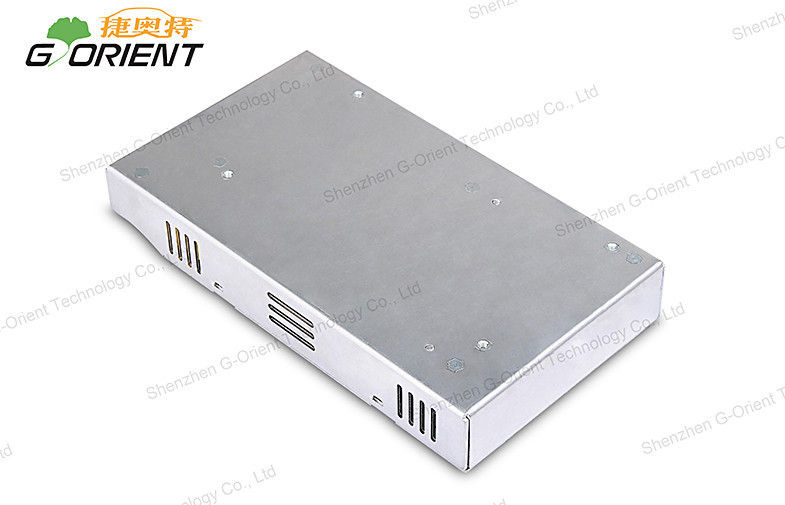

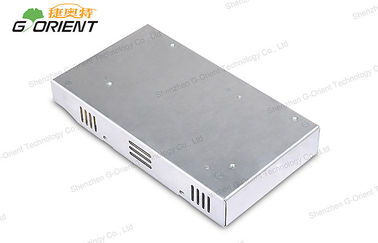

DC5V Single Output Switching 60A Power Supply With 2 Year Guarantee
Features:
* AC input range selectable by switch
* Withstand 300vac surge input for 5 second
* Built-in constant current limiting circuit
* 100% full load burn-in test
* Protections:Short circuit / Overload / Over voltage / Over temperature
* Cooling by free air convection
* Fixed switching frequency at 90KHz
Company Advantage:
* Short lead time
* Professional R&D team
* High quality products
* Standardized production process
Specifications:
Switching power supply |
NHI300-5-A |
|
OUTPUT |
DC Voltage |
5V |
Current Range |
0~60A |
|
Rated Current |
60A |
|
Rated Power |
300W |
|
Ripple & Noise(max.) |
<250mVp-p |
|
Voltage ADJ.Range |
4.5~5.6V |
|
Voltage Tolerance |
+/- 2.0% |
|
Line Regulation |
+/- 0.5% |
|
Load Regulation |
+/- 1.0% |
|
Setup,Rise Time |
1000ms,50ms/230VAC |
|
Hold up time |
20ms/230VAC |
|
INPUT |
Voltage Range |
200-240VAC |
Frequency Range |
47-63Hz |
|
Efficiency(Typ.) |
83-88% |
|
AC Current |
4A/230VAC |
|
Inrush Current(max.) |
60A/230VAC |
|
Leakage Current |
< 3.5mA /240VAC |
|
Protection |
Over Load |
105 ~ 150% rated output power |
Protection type: Constant current limiting,recovers automatically after fault condition is removed |
||
Over Voltage |
5.75~ 7.0V |
|
Protection type: Shut down O/P voltage,re-power on to recover |
||
Over Temperature |
90℃ +/- 5℃ |
|
Protection type: Shut down O/P voltage,recovers automatically after temperature goes down |
||
Function |
Fan on/off control(Typ.) |
RTH2≧50℃ Fan on,≦45℃ Fan off |
Environment |
Working Temp. |
-20 ~ +60℃ (Refer to output load derating curve) |
Working Humidity |
20 ~ 90% RH, non-condensing |
|
Storage Temp., Humidity |
-20 ~ +85℃, 10 ~ 95% RH |
|
Temp.Coefficient |
+/-0.03%/℃ (0 ~ 50℃) |
|
Vibration |
10 ~ 500Hz, 5G 10min./1 cycle,60min. Each along X, Y, Z axes |
|
|
Competitive Advantage:
* Small size,ultra-light and easy to install
* CE / ROHS / FCC approval
* synchonous rectification
* High efficiency up to 85%
* Ultra-thin 30mm
* Ultra-low start up temp.(- 40℃)
* Protections:Short circuit / Overload / Over voltage / Over temperature
Applications:
* Products can be used to street lamps, lawn lamps, sunlight lamps, LED lighting
* Adornment: LED lamp, LED luminaire , LED strips, LED screens, advertisement screens
* Industrial electrical products, machinery and electrical equipment, security system, air purifier
