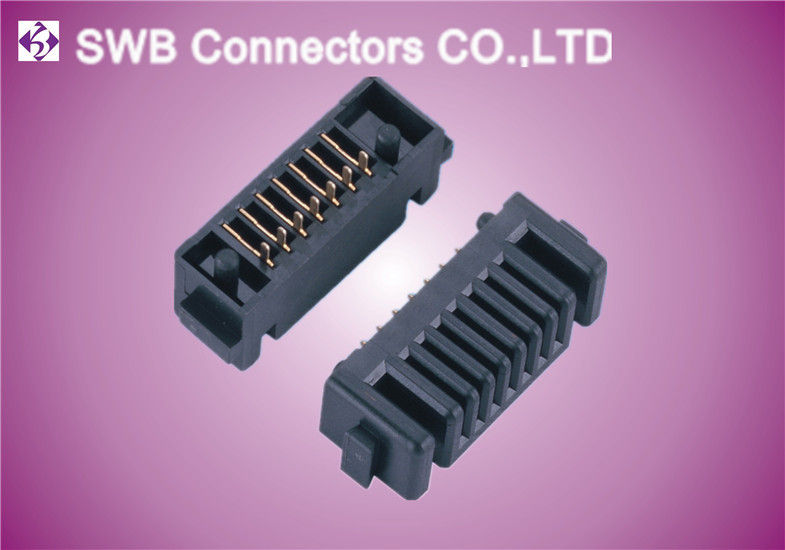

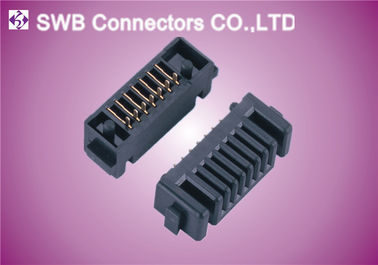

Name: Single Row 2.5mm PCB Battery Connectors , Power Supply 12 Pin Female Connector
Brand: Shenzhen YONP Power Co.,Ltd
SKU: SF200-062-XX-V-XX-H
Availability: InStock

Home Products AC-DC Power Supplies

Single Row 2.5mm PCB Battery Connectors , Power Supply 12 Pin Female Connector

Product Details:

Place of Origin:	China
Brand Name:	SWB
Certification:	ISO9001/SGS/UL/RoHS/Reach
Model Number:	SF200-062-XX-V-XX-H

Payment & Shipping Terms:

Minimum Order Quantity:	5000 pcs
Price:	Negotiation
Packaging Details:	PE Bag Packing
Delivery Time:	7~10 work days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	700,000,000 Pieces Per Week

Contact Now

Detailed Product Description

Product Name:	Battery Connector	Series:	PCB Batteery Connectors
Model Numbe:	SF200 Series	Description:	2.50mm Pitch (.098") Battery Connectors
Original Manufacture:	SWB Connectors Co.,Ltd	Application:	Home Appliances / Automotive Equipments
Plastic Material:	Thermoplastic UL 94V-0
Highlight:	Female Battery Connector , PCB Female Connector

PCB Battery Connectors 2.50mm Pitch SF200 for Power Supply of Battrery Connectors

Specifications:

Product Name	Battery Connector
Product Series	PCB Batterry Connectors
SWB Part Number	SF200-062-XX-V-XX-H
Gender	Female
Pitch	2.50mm
No. of Rows	1
No. of Contacts	05~12
Orientation	Straight
Contact Material	Cooper
Contact Plating	Gold-Plated
Plastic Material	Thermoplastic UL 94V-0
Plastic Color	Black
Current Rating	5A AC/DC
Voltage Rating	250V AC/DC
Operating Temp. Range	-40℃~+105℃
Contact Resistance	30mΩ Max
Insulation Resistance	100MΩ Min
Withstanding Voltage	500V AC/minute
Wire Range	AWG#28~32
