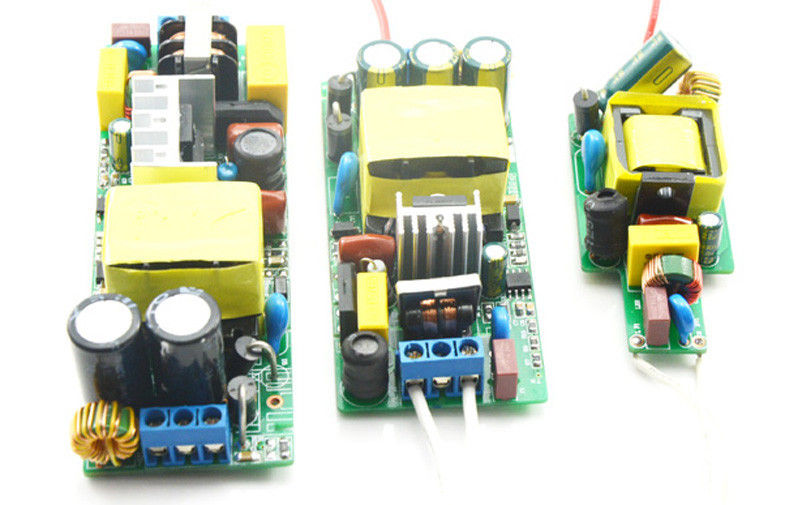

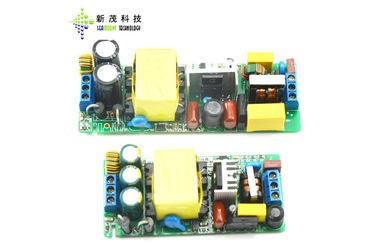

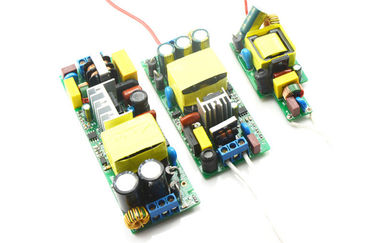

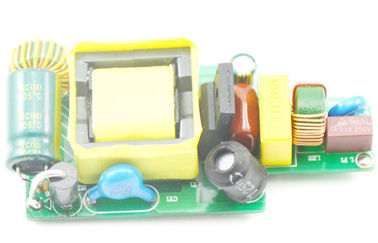

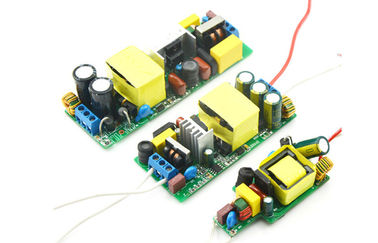

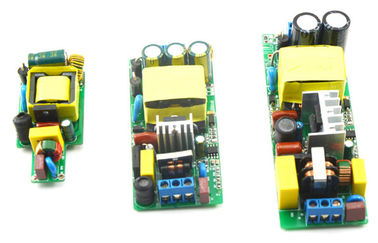

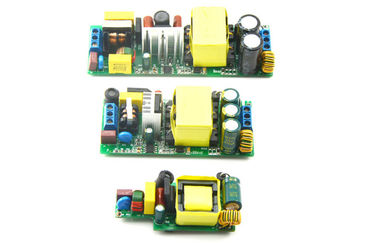

30-50W isolation type constant current LED driver

• Part Number: SMDA-3050-PF
• Brand Name:SEAMOUNT
• Product description:30-50W isolation type constant current LED driver power supply
• Output power: 30-50W

• Input voltage: 85 ~ 265V AC
• Input frequency: 47 Hz ~ 63 Hz
• Power factor>0.95
• Output voltage: 20 ~ 45 VDC
• Maximum current: 1.5A
• Maximum output power: 50 w
• Conversion efficiency> 89%
• Constant current precision:±3%
• Ripple and noise (P - P) ≤5%

• Temperature coefficient: ±0.2%/℃


Product features:

• High voltage start, no delay, no flicker
• Low ripple, start quickly, high PF, high efficiency
• Over temperature protection, over-voltage protection, overload protection, short circuit protection
• Isolated power supply, safe and reliable, two years warranty
• CE, RoHS certification


Electrical properties:

Protection features:

• Output no-load voltage≤60V
• Short circuit protection
• Over temperature protection
• Over voltage protection
• Overload protection


Electromagnetic interference:

• Conducted interference degree: EN55015, CLASS B
• Radiated interference degree: EN55015, CLASS B


Environmental conditions:

• Working temperature: 10 ℃ ~ + 45 ℃ typical values (25 ℃)
• Storage temperature: -20℃～+70℃ typical values (25 ℃)
• Relative humidity: 5~95%
• Atmospheric pressure: 70-106 KPa


Certification&life:

• EMC:BST13110685Y-1EC-1
• LVD:BST13110685Y-1SC-2
• RoHS:BST13110685Y-1RC-4
• Life: 50,000 hours long life design


Product packaging/size /weight/ quantity:

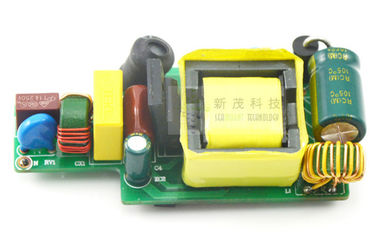

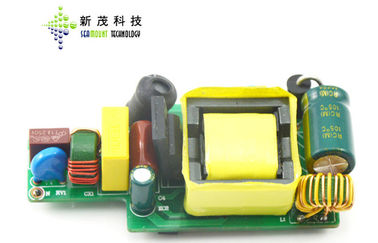

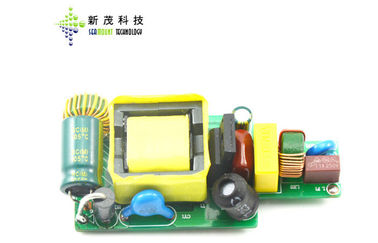

• Driver size/weight: 109mm*39mm*23mm

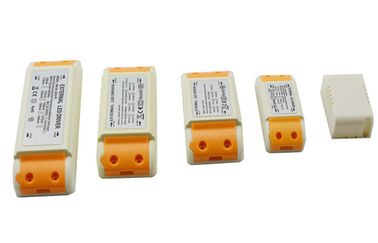

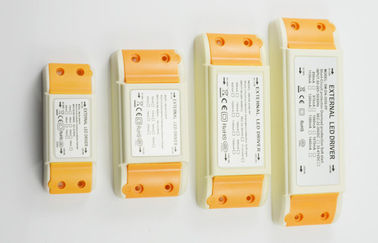

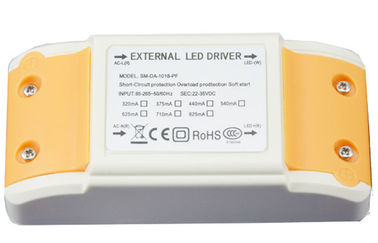

• External driver size/weight: 140mm*45mm*28mm
• Driver packing size/weight/quantity:
• External driver packing size/weight/quantity:

Application:

• Widely used in 30-50W LED Lighting.
