Name: 19 inch constant current LED driver CC CV output , high efficency power supply
Brand: Shenzhen YONP Power Co.,Ltd
SKU: RT-DL688-C
Availability: InStock

Home Products Constant Current Led Driver

19 inch constant current LED driver CC CV output , high efficency power supply

Product Details:

Place of Origin:	china
Brand Name:	RayElite
Certification:	CE, ROHS
Model Number:	RT-DL688-C

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	negotiation
Packaging Details:	Carton box
Delivery Time:	14 days
Payment Terms:	T/T
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

Highlight:

led current controller

high power led driver

19 inch constant current LED driver, with CC CV output, high efficency power supply, CE approved

Quick Detail

Model Number: RT-DSL688-C

Brand Name: RayElite

Type: led constant current controller

Lamp Power (W): 688w

Input Voltage (V): 90-250V

Place of Origin: Guangdong China

Gross Weight: 6kg

Package Size: 482*252*88mm

Applications:

Disco and Club
Live performance
Stage show
architectural
Home decorate

Specifications :

Model No.::	DL688-C
Power supply:	90-250V
Power consumption:	688w
Power output	8 ports RGB CC, 4 ports RGB CV
Upgrade	software can be update via USB
Control:	DMX/AUTO/SLAVE/SOUND
dmx	68ch DMX channels control
Water proof	IP 20
Dimension:	48225288mm
N.W.:	6KG
G.W	7KG
BOX SIZE	502690CM

Competitive advantages:
rack mount, high quality high efficency PFC power supply with CE RoSH SAA C-tick approval from meanwell, refresh rate 1000HZ for TV studio,no flickering, 8 constant current RJ45 outputs, 4 constant voltage phoenix outputs, individual DMX address for all ports.

Detail & Effect

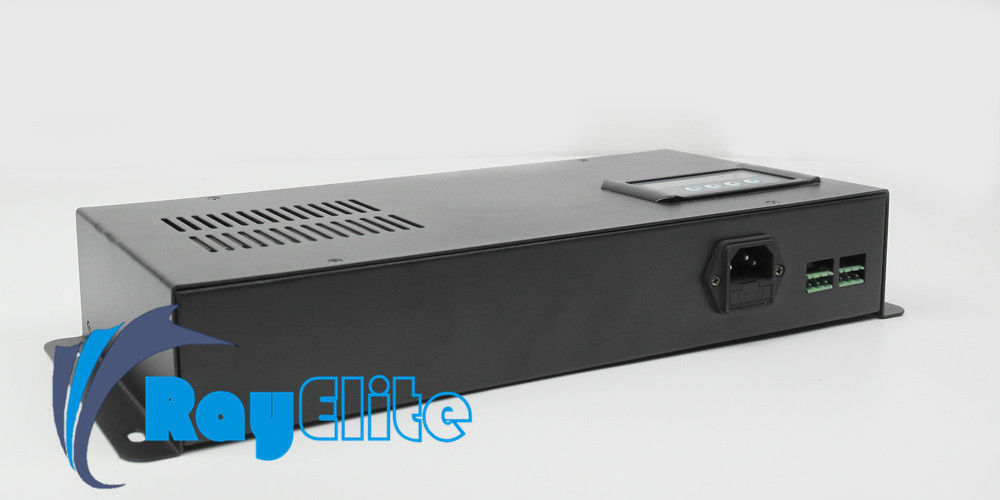

19 inch constant current LED driver CC CV output , high efficency power supply 0
