| Gaoxin Industrial Park,Guangming New Zone,Shenzhen City, Guangdong Province, China | Angelwang66@126.com |
 |
| Place of Origin: | China |
| Brand Name: | MX / OEM / ODM |
| Certification: | CE / ROSH |
| Model Number: | MX4020GB(S)H5 |
| Minimum Order Quantity: | 200pcs |
|---|---|
| Price: | US$2.00/PCS-US5.00/PCS |
| Packaging Details: | CARTON BOX |
| Delivery Time: | 5-8 days |
| Payment Terms: | T/T / PAYPAL |
| Supply Ability: | 20,000/DAY |
| Material: | Plastic | Color: | Black |
|---|---|---|---|
| Bearing Type: | Dual Ball Bearing Or Sleeve Bearing | Rated Voltage: | 4.5-5.5V |
| Leadwire: | Red Wire Positive ( + ),Black Wire Negative ( - ) | Applicating: | Computer / Tablet Pc |
| High Light: | dc motor fan,12 volt blower fan |
||

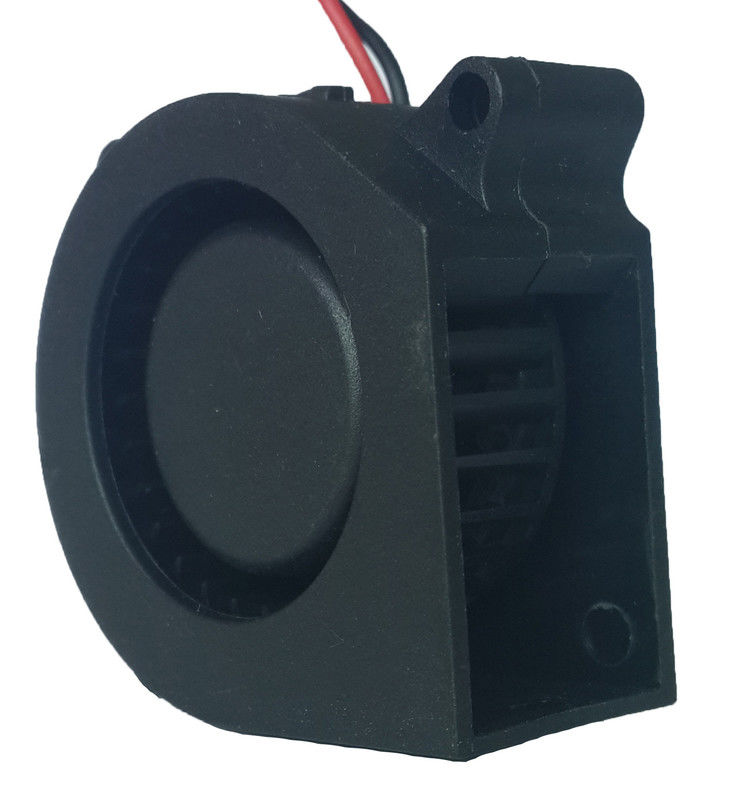

Plastic 12 Volt Blower Fan / Small Power Supply Exhaust Fan
40mm x 40mm x 20mm DC Blower Fan , low noise and long life expectancy , are widely used in the computer information technology , network communications , as well as industrial production equipment , medical equipment , home appliances , etc .
Description ;
● Various Size
● High speed , Middle speed , Low speed
● Plastic Frame or Die-Cast Aluminum Frame and Plastic impeller
● 5 blades 7 blades or 9 blades
● 5V DC 12V DC 24V DC
● Ball bearing or Sleeve bearing or Hydraulic bearing
● Terminal or Lead wire
● Waterproof explosion proof or high proof are can be satisfied .
A : Specifications :
| Model | Bearing Type | Rated Voltage | Operating Voltage | Input Current | Input Power | Speed | Max Air Flow | Max Static Pressure | Noise | Weight |
| Part No. | B.S | VDC | VDC | Amp | Watt | RPM | CFM | mm-H2O | dB-A | g |
| MX4020GB(S)H5 | B.S | 5 | 4.5-5.5 | 0.32 | 1.60 | 6000 | 3.80 | 6.90 | 30 | 24 |
| MX4020GB(S)M5 | B.S | 5 | 4.5-5.5 | 0.23 | 1.15 | 4500 | 3.10 | 5.10 | 25 | 24 |
| MX4020GB(S)L5 | B.S | 5 | 4.5-5.5 | 0.14 | 0.70 | 3000 | 2.20 | 3.00 | 21 | 24 |
| MX4020GB(S)H1 | B.S | 12 | 10.8-13.2 | 0.15 | 1.80 | 6000 | 3.80 | 6.90 | 30 | 24 |
| MX4020GB(S)M1 | B.S | 12 | 10.8-13.2 | 0.11 | 1.32 | 4500 | 3.10 | 5.10 | 25 | 24 |
| MX4020GB(S)L1 | B.S | 12 | 10.8-13.2 | 0.08 | 0.96 | 3000 | 2.20 | 3.00 | 21 | 24 |
| MX4020GB(S)H2 | B.S | 24 | 21.6-26.4 | 0.09 | 2.16 | 6000 | 3.80 | 6.90 | 30 | 24 |
| MX4020GB(S)M2 | B.S | 24 | 21.6-26.4 | 0.07 | 1.68 | 4500 | 3.10 | 5.10 | 25 | 24 |
B : ( Main Materials , Parts Specification ) :
|
Bearing |
■( Dual Ball Bearing ) |
□ |
( Sleeve Bearing ) |
|||||||
|
Frame |
■ |
PBT of UL94V-0. |
□ |
Die-cast Aluminum Alloy |
||||||
|
Impeller |
■ |
PBT of UL94V-0. |
□ |
Steel |
||||||
|
Bobbin |
PBT of UL94V-0. |
|||||||||
|
Lead Wire |
■ |
Red ( + ) |
■ |
Black ( - ) |
□ |
Blue ( PWM ) |
UL 1571 28# |
|||
|
□ |
Yellow(FG) |
□ |
White(RD) |
2 wires 300±10mm |
||||||
|
Connector |
No |
|||||||||
|
Tube |
No |
|||||||||
C: Electrical Specification:
|
ITEM |
|
Specification . Condition |
|||
|
Locked Rotor Protection |
□ |
Safety Condition |
|||
|
|
Auto power off after locked at rated voltage for 1sec |
||||
|
Polarity Protection |
■ |
Open circuit when Vcc&GND are exchanged |
|||
|
□ |
Circuit won’t be burned within 5 seconds when Vcc &GND are exchanged |
||||
|
Insulation Resistance |
10MΩ Between unshielded wire and frame at 500VDC/min |
||||
|
Dielectric Strength |
5mA Max/ Measured b/w lead wire ( + ) and frame at 500VAC /min |
||||
|
Special Function |
□ |
Soft Start |
□ |
Current Limiter |
|
Dimensions (Unit:mm)
