Gaoxin Industrial Park,Guangming New Zone,Shenzhen City, Guangdong Province, China | Angelwang66@126.com |
Place of Origin: | China |
Brand Name: | RM |
Certification: | CE ROHS |
Model Number: | RM-150W-12V-IP67/RM-150W-24V-IP67 |
High Light: | led lighting power supply,rgb led strip power supply |
---|

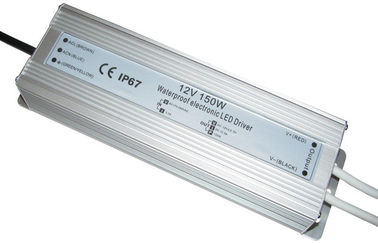

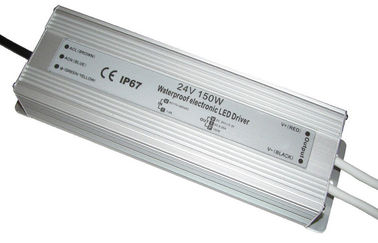

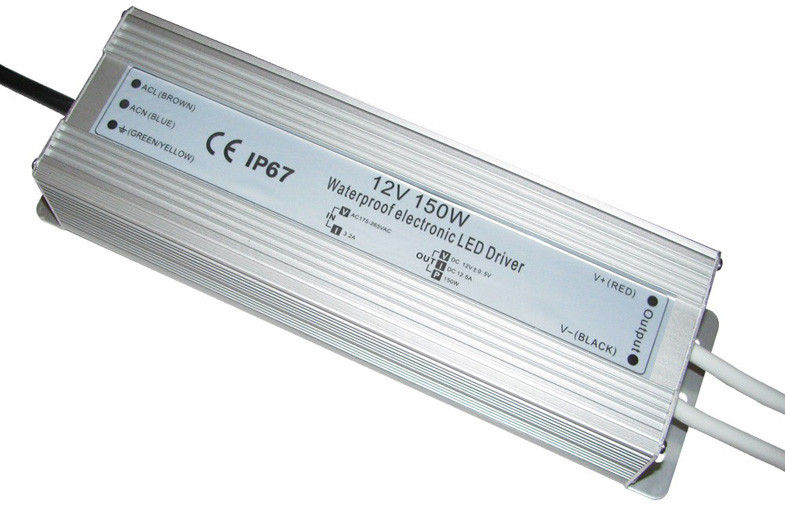

150 Watt PFC Waterproof LED Power Supply Constant Voltage adapter
Quick Detail:
1, Input Voltage AC: 90~265VAC 50/60Hz
2, Watt:150W
3, Volts: 12VDC or 24VDC
4, IP67 waterproof power supply
5, Material:Aluminum
6, Standards And Certifications: CE RoHS
Description:
Light emitting diodes (LEDs) are low-voltage light sources that require a constant DC voltage or current to operate optimally. Because they operate on a low-voltage DC power supply, they easily adapt to different power supplies, have longer standby power, and are safer. LEDs require a device that can convert incoming AC power to the proper DC voltage and regulate the current that flows through the LED during operation. This Switching Power Supply LED driver converts 120V 60 Hz AC power to the 12 Volt DC power required by the LEDs and protects them from line-voltage fluctuations. You will be getting one Brand New LED Driver Switching Power Supply Transformer from 110/220V Volt 50-60 hz to 12 Volt DC. Simple to Use.
12VDC / 24VDC, 150W waterproof Power supply/transformer for LED strip light | |
Input Voltage | 90-265V AC 50/60Hz |
Power: | Max 150W |
Material: | Aluminum |
Lifespan: | >50000hours |
Output voltage: | 12VDC or 24VDC |
Working temp: | 0-40 |
Size: | L240mm*W69mm*D43mm |
IP class: | IP67 |
Certifications: | CE & RoHS |
Competitive advantages:
International AC input range
High efficiency, low working temperature
Soft-start circuit, limiting AC surge current
Short circuit, overload, over voltage protected
Compact size, light weight
100% full load burn-in test
Built in emi filter, low ripple noise
Low cost, high reliability
Power Supply Maximum Capacity:
Power supply | 60W | 100W | 150W | 250W | 400W |
3528(60 LEDs/meter) | 16M | 27M | 41M | 69M | 111M |
5050(60 LEDs/meter) | 5M | 8M | 12M | 20M | 33M |
5630(60 LEDs/meter) | 4M | 6.5M | 10M | 17M | 27M |
2835(60 LEDs/meter) | 8M | 13.5M | 20.5M | 34.5M | 55.5M |
Applications:
