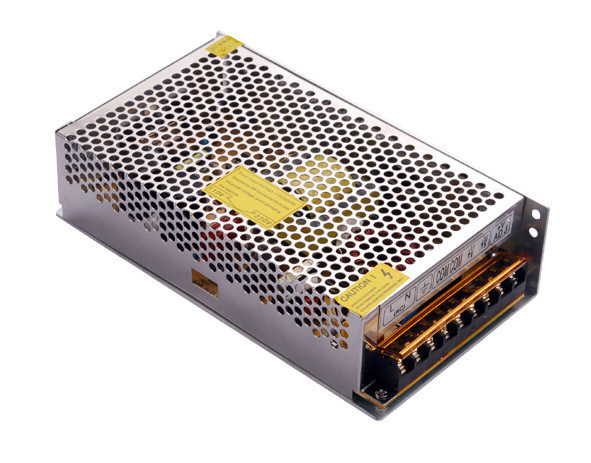

Name: LED Light AC to DC Power Supplies , EN55022 / GB3954 English Desktop DC Power Supply
Brand: Shenzhen YONP Power Co.,Ltd
SKU: WT12020000
Availability: InStock

Nhà Sản phẩm CCTV Power Supplies

LED Light AC to DC Power Supplies , EN55022 / GB3954 English Desktop DC Power Supply

Thông tin chi tiết sản phẩm:

Place of Origin:	China
Hàng hiệu:	WT
Model Number:	WT12020000

Thanh toán:

Minimum Order Quantity:	500 pcs
Giá bán:	negotiable
Packaging Details:	PE bag+ white box
Delivery Time:	15 Days
Payment Terms:	T/T(30% in advance, 70% the balance must be paid before the delivery)
Supply Ability:	4000 PCS/Day

Tiếp xúc

Chi tiết sản phẩm

Làm nổi bật:

security camera power supply

Worldwide power supply

Building Lighting Decoration 240W CCTV Power Supplies with 12V DC 20A

Quick Details:

Input voltage: 100 to 240V AC, 50/60Hz
Output voltage: 12V 20A
Power: 240W
Application: Building Lighting Decoration

Protections:

Overloading protection: 115 to 150% of rated power, when it happened, the power shuts down automatically, when trouble removed the power recovers itself
Over-voltage protection: 130 to 150% of rated voltage
Over-current protetion

Insulation intensity:

Input/output: 1,500V/5mA, 60 seconds
Input/ground: 1,500V/5mA, 60 seconds
Output/ground: 500V/5mA, 60 seconds
Input/output: 1,500V/5mA, 60 seconds
Input/ground: 1,500V/5mA, 60 seconds
Output/ground: 1,500V/5mA, 60 seconds

Environment requirement:

Operating temperature: 0 to 40°C
Operating humidity range: 10 to 90% RH (no freezing dew)
Storage temperatures: -20 to 85°C
Storage humidity range: 10 to 95% RH (no freezing dew)
Elevation: ≤3,000m
Weight: 300g
EMC: EN55022 and GB3954

Warranty:	1 year
Usage:	Building Lighting Decoration
Packaging:	PE bag+ white box
Place of Origin:	China(Mainland)
Brand Name:	WT
MOQ:	500 pcs
Delivery Time:	15 Days
Payment Terms:	T/T(30% in advance, 70% the balance must be paid before the delivery)
Supply Ability:	4000 PCS/Day

Our Advantages:

Professional&experienced engineers
Good quality
Competitive price
Intime service
Free samples available
About 10 years experiences
OEM/ODM services are highly welcome
Flexible to meet dynamic requirements
High technology
Short Lead time
AC input power suitable for the world
Soft-start current can reduce the AC input impact efficiency
With short-circuit and overload protection
Compact size ,light weight
100%full-load burning test
Installed with EMI filter ,minimum wave
Fashionable design
Small size
Low-ripple and noise
High-efficiency

Some Using Details:

Do not install power supply in locations with high humidity, dust or strong direct sunlight.
Connect power supply to the supplied unit.
Power supply must be connected to a working electrical AC line with a voltage of 100-240V.
Power supply can only be installed indoors.
The power supply should be installed in a location with good airflow.
