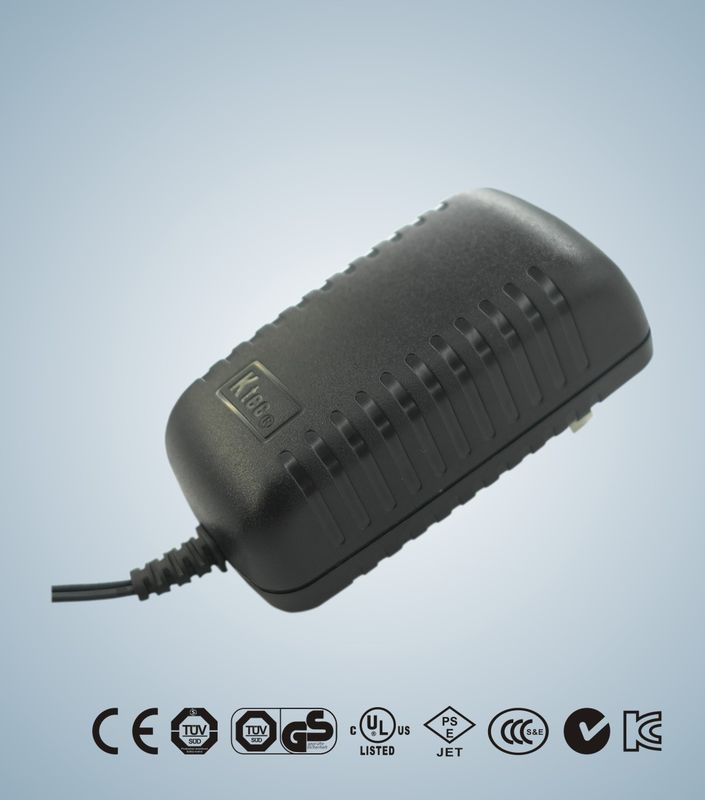

25W KSAFE Series Light Switching Power Adapters with 3-48VDC 0.04-1.68A for Printer,Hard disk drive,Set-top-box

25W KSAFE Series Light Switching Power Adapters with 3-48VDC 0.04-1.68A for Printer,Hard disk drive,Set-top-box

  • 25W KSAFE Series Light Switching Power Adapters with 3-48VDC 0.04-1.68A for Printer,Hard disk drive,Set-top-box
25W KSAFE Series Light Switching Power Adapters with 3-48VDC 0.04-1.68A for Printer,Hard disk drive,Set-top-box
Product Details:
Place of Origin: China Mainland
Certification: CB , GS , CE , BEAB, UL , CCC , FCC,KC,PSE
Model Number: 25W KSAFE Series
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Negotiable
Packaging Details: PE bag + White box
Delivery Time: 35days
Payment Terms: T/T
Supply Ability: 1Million/Month
Contact Now
Detailed Product Description
High Light:

switching power supply adapter

,

switching mode power adapter



25W KSAFE Series Light extra slim, sleek, compact design Switching Power Adapters  with 3-48VDC 0.04-1.68A for Printer,Hard disk drive,Set-top-box UL60950 approval



Brand Name:
Input: •Input Voltage:   90 to 264 VAC
•Frequency :      47-50/60-63HZ
•Input current :  0.6A (Max) 120 /240VAC
•Inrush current : 50 A Max. 100VAC at max Load
                              60A Max.240VAC at max Load
•Leakage current: 0.25 mA Max
Output: •Over voltage protection
•Over current protection
 at 110-200% of lo and Auto-recovery
•Electronic short circuit protection
•Average efficlency Measured at 25℃
•Environmental Operating
 Operating temperature 0~40℃ Free convection
 Operating humidity 10-80% RH Non Condensing
 Sea level Non-operating temperature -20~ 80℃
Safety standards: •Information technology equipment
•IEC/EN 60950-1, UL 60950-1, CSA C22.2
•No. 60950-1-03,GB4943,K60950
Certificates and approvals: •CB , GS , CE , BEAB, UL , CCC , FCC,KC,PSE
EMI Emission: •Radiation Test&Conduction Test:EN 55022/FCC Part 15
•Harmonic Test:EN 61000-3-2
•Flicker  Test:EN 61000-3-3
EMS immunity: •ESD    Test:EN 61000-4-2
•RS     Test:EN 61000-4-3
•EFT    Test:EN 61000-4-4
•Surge  Test:EN 61000-4-5
•CS     Test:EN 61000-4-6
•DIP    Test:EN 61000-4-11
Key Applications: Key Features of KSAFE series
•Light, extra slim, sleek, compact design
•High power density
•Extra safe design, have got their respective safety approvals
•Completed protect function

Key Applications of KSAFE series
•It’s suitable for an extremely wide range of applications, including:
•Printer
•Pos
•Hard disk drive
•Set-top-box
Payment Details: •Payment Terms: T/T,negotiable for OEMs
Main Export Markets: • Eastern Europe
• North America
• Mid East/Africa
• Central/South America
• Asia
• Western Europe
• Australasia

25W KSAFE Series Light Switching Power Adapters with 3-48VDC 0.04-1.68A for Printer,Hard disk drive,Set-top-box 0

25W KSAFE Series Light Switching Power Adapters with 3-48VDC 0.04-1.68A for Printer,Hard disk drive,Set-top-box 1

25W KSAFE Series Light Switching Power Adapters with 3-48VDC 0.04-1.68A for Printer,Hard disk drive,Set-top-box 2
