Name: Medical Power Supply / Power Adapter 100W 24Volt dc / 6.4A MDA100-220S24
Brand: Enargy
SKU: MDA100-220S24
Rating: 4.6 (150 reviews)

Home Products Switching Power Adapters

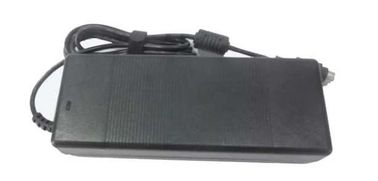

Medical Power Supply / Power Adapter 100W 24Volt dc / 6.4A MDA100-220S24

Product Details:

Place of Origin:	China
Brand Name:	Enargy
Model Number:	MDA100-220S24

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Negotiation
Delivery Time:	1-8 Weeks
Payment Terms:	Negotiation
Supply Ability:	1000Pcs/week

Contact Now

Detailed Product Description

High Light:	medical power adapter

Medical Power Supply / Power Adapter 100W 24Volt dc / 6.4A MDA100-220S24

Key Features

AC input range:100~240Vac

Triple outputs:24V/4.2A

160W peak power

High efficiency:85%

Line regulation: ≤±1%

Load regulation: ≤±2%

Low ripple&noise:≤200mV

short circuit protection

Output over current protection

Output over voltage protection

Over temperature protection

Natural cool

RoHS compliant

IEC60601-1 3rd compliant

UL94V-0 flame-retarded rating

Product Overview

This AC-DC converter use advanced power processing,
control and packaging technologies to provide the
performance, flexibility, reliability and cost effectiveness of
a mature power component. High frequency switching
provides high power density with low noise and high
efficiency.

Input Characteristics

Parameter	Min	Typ	Max	Units	Notes
Rated input voltage	100	220	240	Vac
AC input voltage range	90		264	Vac
Rated AC input frequency		50/60		Hz
AC input frequency range	47		63	Hz
Max. input current			2	A	Min. input voltage, full load
Input inrush current			60	A	240Vacinput voltage,25℃, first start
Efficiency		85		%	Rated input voltage, rated load
The power factor		92		PF

Output Characteristics

Parameter		Min	Typ	Max	Units	Notes
Output voltage range		23.53	24.30	24.48	Vdc
Output current range		0		4.5	A	240Vac input Peak current6.87A/1s,restoe2.5A/5s
Line Regulation				±1	%
Load Regulation				±2	%
Temperature Regulation			±0.002		% / °C	Over operating temperature range
Ripple & noise				200	mV	Rated input, full load, 20 MHz bandwidth
Dynamic response	Deviation			±5	%	25% to 50% to 25% Iout max, 50% to 75% to 50% Iout max, 1A/us
Dynamic response	Settling time			500	uS	To within 1% Vout nom.
Turn-on rise time				50	ms	Full load,10%~90% Vout
Turn-on delay time				3	s	220Vac, Full load
Output voltage overshoot				±5	%
Output Capacitance			2200		µF

Protection Characteristics

Parameter	Min	Typ	Max	Units	Notes
Output over voltage protection	26		30	Vdc	Hiccup
Output over load protection	7		10	A	Hiccup
Short – Circuit Protection			10	mΩ	Hiccup

General Characteristics

100W AC-DC Converter

Parameter

Min	Typ	Max	Units	Notes
MTBF	250			KHrs	Rated input, full load,25℃
Weight			500	g

Environmental Characteristics

Parameter	Min	Typ	Max	Units	Notes
Operating temperature	0		+40	℃
Storage temperature	-40		+55	℃
Relative humidity	20		90	%
Storage humidity	10		95	%
Altitude			3000	m
Atmospheric pressure	70		106	Pa

Safety Characteristics

Parameter

Min

Typ

Max

Units

Notes

Isolation

voltage

Input

output

4000

Vac

5mA/1min, No arcing and breakdown

Isolation

resistance

Input

output

MΩ

500Vdc/1min, normal atmospheric pressure, 90% humidity

EMC Characteristics

Item		Standards	Conditions	Notes
CE		EN55022	Class B	Pass system test
RE		EN55022	Class B	Pass system test
Harmonic		EN61000-3-2	C type lamps requirements	Criterion B
Voltage fluctuations and flicker		EN61000-3-3	Class A equipments requirements	Criterion B
Surge		EN61000-4-5	Differential mode ±2KV,common mode±4KV	Criterion B
DIP		EN61000-4-11 EN55024	Voltage dip to 0%Ut,10ms	Criterion B, test at phase 0, 90, 180 and 270
			Voltage dip to 40%Ut, 20ms
			Voltage dip to 70%Ut,50ms
ESD	Air	EN61000-4-2	±8KV	Criterion B

100W AC-DC Converter

	discharge
	Contact discharge	EN61000-4-2	±4KV	Criterion B
Fire raing		UL94-V0
Waterproofing grade		IP2X

Notes:

Criterion A: Normal performance during and after test.

Criterion B: Low-voltage protection or reset is not allowed. Temporary output voltage fluctuation ceases after disturbances ceases, and from which the EUT recovers its normal performance automatically. During the system test, output voltage fluctuation or reset is not allowed too.

Criterion C: Temporary loss of output is allowed, but the hardware can’t be damaged. The EUT recovers its normal performance automatically or operator intervention.

Criterion R: Loss of output which is not recoverable is allowed. The primary protective component (fuse) can be damaged. The EUT recovers its normal performance after replace the damaged component.

Environmental Qualification

Parameter	Notes
Vibration	Frequency range: 5-20Hz,+3dB/otc; 20-80Hz,0.04g2/Hz; 80-500Hz, -3dB/ot c ; X.Y.Z axes, 30min/axis Sweep frequency: frequency range:5-55Hz; amplitude: 0.35mm; sweep frequency cycle:5min; X.Y.Z axes, 30min/axis
Mechanical Shock	Half-sine wave, 300m/s2,11ms, ±X,±Y,±Z, 6tims/direction
Cold(in operation)	IEC60068-2-1 Ad
Damp heat	IEC60068-2-67 Cy
Temperature Cycling	0°C to 40°C, ramp 15°C/min., 500 cycles
Power/Thermal Cycling	Vin = min to max, full load, 100 cycles
Design Marginality	Tmin-10°C to Tmax+10°C, 5°C steps, Vin = min to max, 0-105% load
Life Test	95% rated Vin and load, units at derating point, 1000 hours
Solder ability	IEC60068-2-20

Standards compliance

Standards	Notes
UL/cUL60950
EN60950
GB4943
IEC 695-2-2	Needle flame test, test on entire assembly, board&plastic components UL94V-0 compliant
IEC 61000-4-2
