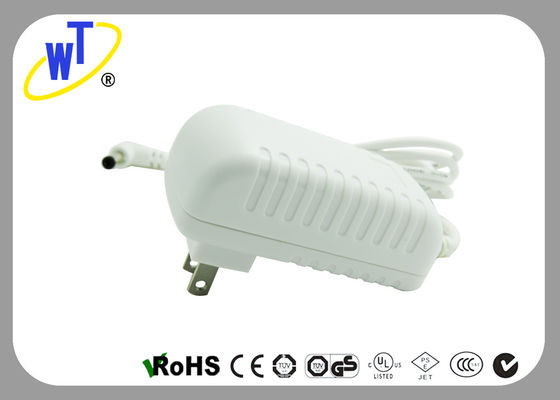

Name: Small 2 Pins US Plug - in Wallmount Power Adapter for Router / Switch with UL
Brand: Shenzhen YONP Power Co.,Ltd
SKU: WT1201500
Availability: InStock

Home Products Wall Mount Power Adapter

Small 2 Pins US Plug - in Wallmount Power Adapter for Router / Switch with UL

Product Details:

Place of Origin:	China
Brand Name:	WT
Certification:	UL/CCC/SAA/ROHS
Model Number:	WT1201500

Payment & Shipping Terms:

Minimum Order Quantity:	500 pcs
Price:	negotiation
Packaging Details:	PE bag+white box/PE bag without white box
Delivery Time:	20 Days
Payment Terms:	T/T(30% in advance, 70% the balance must be paid before the delivery)
Supply Ability:	8000 PCS/Day

Contact Now

Detailed Product Description

Color:

White

Jack:

Right Angle/straight

Highlight:

portable power adapter

smart power adapter

18W 2 Pins US Plug - in Wallmount Power Adapter for Router / Switch with UL

Quick Details:

Input voltage: 100 to 240V AC, 50/60Hz
Output voltage: 12VDC 1.5A
Power: 18W
Plug type: US plug-in, 2 pins

Description:

1. Surface cosiness, small size and convenient carrying

2. Low cost, high reliability and all cases are covered by ultrasonic

3. Built-in OVP, OCP and SCP

4. Universal input voltage:

a. I/P voltage 100-240VAC; 50/60Hz

b. Turn on delay time≤3s

c. Inrush current≤30A/24V AC

5. O/P:

a. High accuracy and low noice

b. Hold up time ≥20mS

6. Operation model: CV

7. Environment:

a. Operation temperature: 0°C-40°C;5%-90%RH

b. Storage temperature: -20°C-85°C;5%-95%RH

8. Cooling: Natural cooling

9. Energy standard: CEC/ERP

10. Safety standard: IEC/EN60950

11. Insulation: hi-pot, 3,000V AC 60S 10mA

12. Leakage current: 0.25mA (maximum)

13. MTBF: MIL-HDBK-217F, full load, 25, more than 50,000 hours

14. RoHS compliant

Warranty:	12 months
Certification:	UL/CCC/SAA/ROHS
Usage:	Router/Switch
Packaging:	a. PE bag+ white box b. PE bag without white box
Place of Origin:	China(Mainland)
Brand Name:	WT
Model Numeber:	WT1201500
MOQ:	500 pcs
Delivery Time:	20 Days
Payment Terms:	T/T(30% in advance, 70% the balance must be paid before the delivery)
Supply Ability:	8000 PCS/Day

Model	I/P Condition	O/P Condition				Efficiency	R/N	Max Power
		Voltage	Current	Regulation		Efficiency	R/N	Max Power
		Unit:(V)	Unit:(A)	Line(%)	Load(%)	min%	(mVp-p)	W
WTxxxyyyy	100-240V AC 50/60Hz 1.6A Max	3.3V-6.0V	3.00	2%	5%	76	38	18
		6.1V-9.0V	2.50-3.00	2%	5%	82	38	24
		9.1V-12.0V	2.00-2.50	2%	5%	82	38	24
		12.1V-24.0V	1.00-2.00	2%	5%	82	38	24
		24.1V-36.0V	0.66-1.00	2%	5%	82	38	24
		36.1V-48.0V	0.50-0.66	2%	5%	82	38	24

Our Advantages:

100%full-load burning test
Installed with EMI filter ,minimum wave
Professional&experienced engineers
Good quality
Competitive price
Intime service
Free samples available
About 10 years experiences
OEM/ODM services are highly welcome
Flexible to meet dynamic requirements
High technology
Short Lead time
AC input power suitable for the world
Soft-start current can reduce the AC input impact efficiency
With short-circuit and overload protection
Compact size ,light weight

Some Using Details:

Power supply can only be installed indoors.
The power supply should be installed in a location with good airflow
Do not install power supply in locations with high humidity, dust or strong direct sunlight.
Connect power supply to the supplied unit.
Power supply must be connected to a working electrical AC line with a voltage of 100-240V.
