High Frequency Wall Mount Power Adapter

High Frequency Wall Mount Power Adapter

  • High Frequency Wall Mount Power Adapter
  • High Frequency Wall Mount Power Adapter
  • High Frequency Wall Mount Power Adapter
  • High Frequency Wall Mount Power Adapter
  • High Frequency Wall Mount Power Adapter
High Frequency Wall Mount Power Adapter
Product Details:
Place of Origin: Shenzhen,China
Brand Name: RAYTOP
Certification: CE, RoHS, FCC
Model Number: ET1200300
Payment & Shipping Terms:
Minimum Order Quantity: 2K
Price: Negotiable
Packaging Details: PE Bag, Master Carton, Customer package available.
Delivery Time: 15-20 work days.
Payment Terms: T/T, L/C
Supply Ability: 200,000 Pcs monthly.
Contact Now
Detailed Product Description
AC Cable: 1.2M Application: CCTV Camera
Approval: CE, RoHS, FCC, UL, SAA Cable Material: Copper
DC Cable: 1.2M EMI Standards: FCC Part 15B
Feature: High Frequency Input: AC100-240V
Operating Temperature: 0~40℃ Output: 12V 3A
Output Power: 36W Plug: EU, US, UK, SAA, CCC
Product Name: Wall Mount Power Adapter Protection: Short Circuit, Over Voltage, Over Current
High Light:

Wall Mount Power Supply

,

wall plug adapter

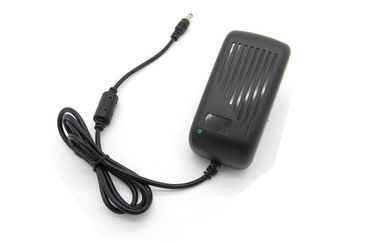

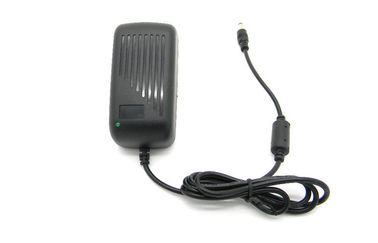

High Frequency Wall Mount Power Adapter 12V 3A UK Plug For CCTV Camera





Quick Detail:



Switching mode power adapter, DC12V 3A, wall mount in conformity with CE, RoHS, FCC certification.





Specs:



Input: AC100-240V, 1.2A max.

Frequency: 50/60Hz

Output: DC12V, 3A

DC Cable: 20AWG, Copper, length: 1.2M

Plug: EU, UK, US, SAA, CCC





Features:



-High efficiency:>82%;

-Protection: Short circuit protection, over voltage protection, over current protection.

-MTBF: 50,000 hours.





Approval: CE, RoHS, FCC

Warranty: 2 years





Description:



This is an universal AC/DC adapter come with single output tip 5.5x2.1x10mm, mainly for CCTV security camera application. It has high efficiency as well as steady performance. The tip size and plug type can be changeable.





Note:



indoor use only





Applications:



used for CCTV security camera.





Specifications:



Input

Rated Input Voltage

AC100~240V

Input Voltage Range

AC 90~264V

Rated Frequency

50/60 Hz

Input Frequency Range

47~63 Hz

Input AC Current

500mA

Inrush Current

30A

Output

Rated Output Voltage

DC12V

Rated Output Current

2000mA

Rated Power

36W

Ripple and Noise

150mV p-p

Standby Power Consumption

0.5W

Turn-on

5s

Hold-up

20s

Over Voltage Protection

Yes

Over Current Protection

Yes

Short Circuit Protection

Yes, automatically recover after short circuit removed.

Reliability

Hi-pot

3000Vac

Insulation Resistance

Input to output at 500Vdc

Leakage Current

5mA

EMI Standards

FCC Part 15B Class B

RoHS Compliant

Yes

MTBF

50,000 hours

Burn-in

40+/-5 ℃, full load, 4 hours

Drop Test

6 direction, each one time from height 1.0M

Environmental

Operating Temperature

0~40℃

Operating Humidity

10~80%

Storage Temperature

-20~65℃

Storage Humidity

0~90%

Safety Approvals

CE, RoHS, FCC, UL, SAA

Warranty

2 Years





Competitive Advantage:



-Open private model w/o extra cost for you;

-0.3% free backup of order quantity;

-Direct factory price without middle man.

-High performance-to-price ratio;

-Perfect after-sale service
