High Frequency Wall Mount Power Adapter 12V 3A UK Plug For CCTV Camera

High Frequency Wall Mount Power Adapter 12V 3A UK Plug For CCTV Camera

  • High Frequency Wall Mount Power Adapter 12V 3A UK Plug For CCTV Camera
  • High Frequency Wall Mount Power Adapter 12V 3A UK Plug For CCTV Camera
  • High Frequency Wall Mount Power Adapter 12V 3A UK Plug For CCTV Camera
High Frequency Wall Mount Power Adapter 12V 3A UK Plug For CCTV Camera
Product Details:
Place of Origin: Shenzhen,China
Brand Name: RAYTOP
Certification: UL, CUL
Model Number: RT-WMA-1200300
Payment & Shipping Terms:
Minimum Order Quantity: 500 PCS
Price: Negotiable
Packaging Details: PE Bag, Master Carton, Customer package available.
Delivery Time: 15-20 work days.
Payment Terms: T/T, L/C
Supply Ability: 200,000 Pcs monthly.
Contact Now
Detailed Product Description
AC Cable: 1.2M Application: CCTV Camera
Approval: CE, RoHS, FCC, UL, CUL, SAA Cable Material: Copper
DC Cable: 1.2M EMI Standards: FCC Part 15B
Feature: High Frequency Input: AC100-240V
Output: 12V 3A Output Power: 36W
Plug: EU, US, UK, AU Product Name: Wallmount Power Adapter 12V 3A
Protection: Short Circuit, Over Voltage, Over Current
High Light:

Wall Mount Power Supply

,

wall plug adapter

110V AC Input US Plug Wallmount AC/DC Power Adapter 12V 3A UL Certified





Descriptions:



Indoor use switch mode power supply, AC power adapter  DC output 12V 3A  in conformity with CE, RoHS, FCC certification



Input: AC100-240V, 0.5A max.

Frequency: 50/60Hz

Output: DC12V, 3A

DC Cable: 20AWG, Copper, length: 1.2M

Plug: EU, UK, US, SAA, CCC

AC Cable: 1.2M 2x0.5mm pure copper;

DC Cable: 1.2M 20 AWG





Features:



-High efficiency:>82%;

-Protection: Short circuit protection, over voltage protection, over current protection.

-MTBF: 50,000 hours.

-Approval: CE, RoHS, FCC

-Warranty: 2 years





Applications:



used for CCTV security camera, POS machine, LED lights, Router, Tablets etc.





Specifications:



Input

Rated Input Voltage

AC100~240V

Input Voltage Range

AC 90~264V

Rated Frequency

50/60 Hz

Input Frequency Range

47~63 Hz

Input AC Current

500mA

Inrush Current

30A

Output

Rated Output Voltage

DC12V

Rated Output Current

3000mA

Rated Power

36W

Ripple and Noise

150mV p-p

Standby Power Consumption

0.5W

Turn-on

5s

Hold-up

20s

Over Voltage Protection

Yes

Over Current Protection

Yes

Short Circuit Protection

Yes, automatically recover after short circuit removed.

Reliability

Hi-pot

3000Vac

Insulation Resistance

Input to output at 500Vdc

Leakage Current

5mA

EMI Standards

FCC Part 15B Class B

RoHS Compliant

Yes

MTBF

50,000 hours

Burn-in

40+/-5 ℃, full load, 4 hours

Drop Test

6 direction, each one time from height 1.0M

Environmental

Operating Temperature

0~40℃

Operating Humidity

10~80%

Storage Temperature

-20~65℃

Storage Humidity

0~90%

Safety Approvals

CE, RoHS, FCC, UL, SAA

Warranty

2 Years





Competitive Advantage:



-Open private model w/o extra cost for you;

-0.3% free backup of order quantity;

-Direct factory price without middle man.

-High performance-to-price ratio;

-Perfect after-sale service

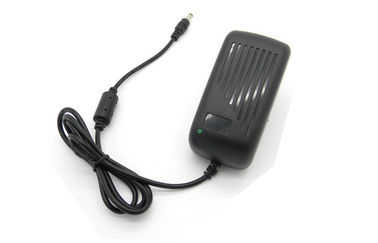

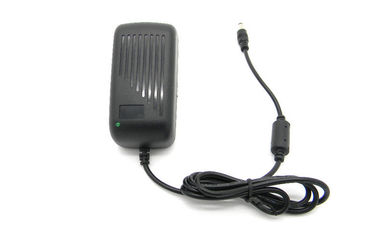

High Frequency Wall Mount Power Adapter 12V 3A UK Plug For CCTV Camera 0
