10Watt Switching AC To DC Power Adapter Wall Mount For SATA
Quick Detail:
10Watt Switching Power Adaptor, Desktop Style, DC 5V,2000A, 5.5x2.1mm Connector.
specs:
Input: AC100-240V, 1.2A max.
Frequency: 50/60Hz
Output: DC5V, 2000mA
DC Cable: 22AWG, Copper, length: 1.2M
Plug: EU, UK, US, SAA, CCC
Tip: 5.5x2.1mm (optional)
Approval: CE, RoHS, FCC, UL, SAA
Warranty: 2 years
Description:

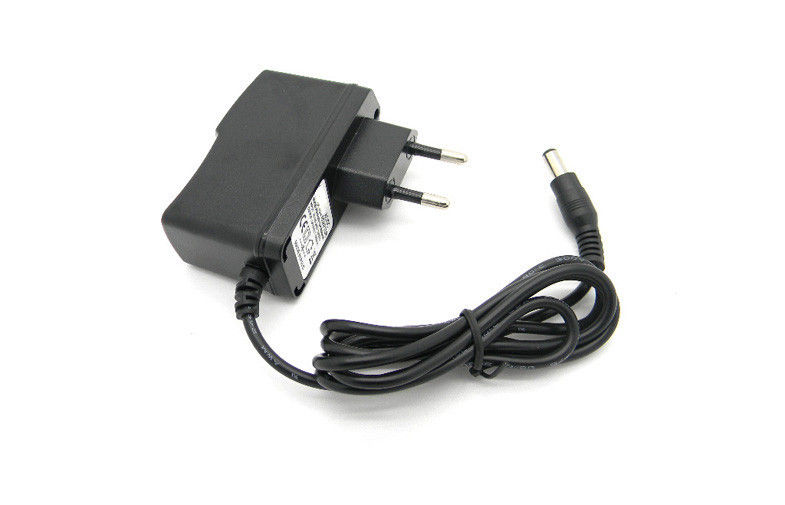

This is an AC to DC wall-mount power adapter come with single output tip 5.5x2.1x10mm. It has high efficiency as well as steady performance. The tip size and plug type can be changeable.
Note:
indoor use only.
Applications:
widely used for LED light, SATA, ADSL, digital photo frame, printer etc.
Specifications:
|
Input
|
Rated Input Voltage
|
AC100~240V
|
|
Input Voltage Range
|
AC 90~264V
|
|
Rated Frequency
|
50/60 Hz
|
|
Input Frequency Range
|
47~63 Hz
|
|
Input AC Current
|
0.2A
|
|
Inrush Current
|
30A
|
|
Output
|
Rated Output Voltage
|
DC5V
|
|
Rated Output Current
|
2000mA
|
|
Rated Power
|
10W
|
|
Ripple and Noise
|
120mV p-p
|
|
Standby Power Consumption
|
0.3W
|
|
Turn-on
|
5s
|
|
Hold-up
|
20s
|
|
Over Voltage Protection
|
Yes
|
|
Over Current Protection
|
Yes
|
|
Short Circuit Protection
|
Yes, automatically recover after short circuit removed.
|
|
Reliability
|
Hi-pot
|
3000Vac
|
|
Insulation Resistance
|
Input to output at 500Vdc
|
|
Leakage Current
|
5mA
|
|
EMI Standards
|
FCC Part 15B Class B
|
|
RoHS Compliant
|
Yes
|
|
MTBF
|
50,000 hours
|
|
Burn-in
|
40+/-5 ℃, full load, 4 hours
|
|
Drop Test
|
6 direction, each one time from height 1.0M
|
|
Environmental
|
Operating Temperature
|
0~40℃
|
|
Operating Humidity
|
10~80%
|
|
Storage Temperature
|
-20~65℃
|
|
Storage Humidity
|
0~90%
|
|
Safety Approvals
|
CE, RoHS, FCC, UL, SAA
|
|
Warranty
|
2 Years
|
Competitive Advantage:
-Open private model w/o extra cost for you;
-0.3% free backup of order quantity;
-Direct factory price without middle man.
-High performance-to-price ratio;
-Perfect after-sale service
