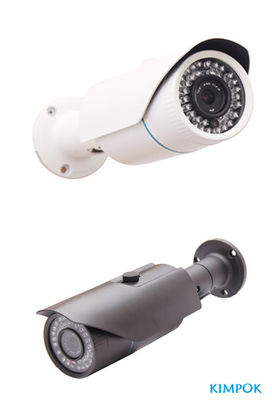

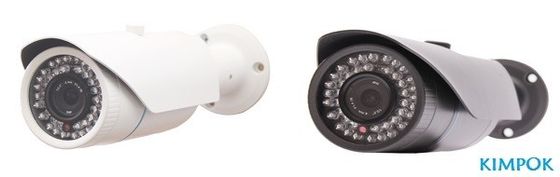

H.264 High Megapixel Security Camera IR Cut Filter Bullet CCTV Camera

H.264 High Megapixel Security Camera IR Cut Filter Bullet CCTV Camera

  • H.264 High Megapixel Security Camera IR Cut Filter Bullet CCTV Camera
  • H.264 High Megapixel Security Camera IR Cut Filter Bullet CCTV Camera
H.264 High Megapixel Security Camera IR Cut Filter Bullet CCTV Camera
Product Details:
Place of Origin: China
Brand Name: Kimpok
Certification: CE/FCC/ROHS
Model Number: KP-IPB11H
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiaiton
Packaging Details: export standard packing
Delivery Time: 3 working days
Payment Terms: T/T, Western Union,PayPal
Supply Ability: 3,000pcs per month
Contact Now
Detailed Product Description
Sensor: 1/3" 2.0 Megapixel Low Illumination CMOS Lens: 3.7-14.8mm Automatic Varifocal Lens
IR LED: 48 IR LEDs, IR Distance 10~45m Compliance: ONVIF 2.1(1.02 Backward Compatible)
Min. Illumination: 0.1lux; 0 Lux With IR On Protection Level: IP66 Rated Waterproof
High Light:

Megapixel Security Cameras

,

Megapixel Surveillance Camera



H.264 2MP Security IP Camera Outdoor IR Cut Filter Bullet Camera  ONVIF 48 LED





Features:

  1. 1/3" 2.0 Megapixel Low illumination CMOS,Max image Resolution 1920*1080@25fps, 3.7-14.8mm automatic varifocal lens ,
  2. H.264 Main Profile @ level 3.0 coding, Real time H.264 dual-stream encoding, resolution, frame rate, bit rate adjustable
  3. Auto-retrieve function and auto-connection network
  4. Build in Motion Detection, support alarm linkage, Supports alarm input and output
  5. Support Color/BW mode converting, IR-CUT Filter
  6. Support bi-directional real time audio transmission(Built-in MIC)
  7. Support Plug-and-Play, including PC surveillance platform and mobile client, Easy to remote, all you need is our IP camera ID and password only
  8. Integrated ONVIF standard, Compatibility with third-party ONVIF platform software
  9. Waterproof, Outdoor use for inclement weather conditions
  10. IP66 Rated Waterproof, Outdoor use

Specifications:


Model
KP-IPB11H
Hardware
Sensor

1/3" 2.0 Megapixel Low illumination CMOS

Lens
3.7-14.8mm automatic varifocal lens
IR LED
48 IR LEDs, IR Distance 10~45m
Day/Night
ICR filter
Min. Illumination
0.1lux; 0 lux with IR on
Max S/N Ratio
50dB
Video
Compression
H.264

main stream: 1920*1080@1-25fps

           1280x960@1-25fps

sub stream: 640x480@1-25fps

320x240@1-25fps

Bit Rate
128~4096kbps, Supports CBR/VBR
Image Control
Hue, saturation, brightness, contrast, exposure
 Auto Image Control
AE, AWB
Audio
Compression
G.711-A
Bit Rate
64kbps/128kbps
Talkback
support
Network
Protocol
TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, FTP, UPNP
Compliance
ONVIF 2.1(1.02 backward compatible)
PC Client and Browser
ISS, IE6.0 and above
Mobile phone
Iphone, ipad, Android
WIFI
support
WIFI Encryption
WAP, WAP2
Interface
Video Output
NA
Audio Input
1 CH 3.5mm audio interface, MIC IN/LINE IN
Audio Output
1 CH 3.5mm audio interface
Alarm Input
NA
Alarm Output
NA
LAN
1 RJ45 10M/100M Ethernet port
RS-485
NA
Storage Interface
Built-in Micro SD (TF) Card slot, SD 2.0 standard, maximum 32GB
Reset Button
YES
General
Working Temperature
-10°C ~ +55°C
Working Humidity
0% - 90%
Protection Level
IP66 Rated Waterproof
Power Supply
DC 12 V/1A
Power Consumption
5.1W  with IR ON ; 2.4W with IR OFF
Dimensions
83*88*280mm
Weight
600g
