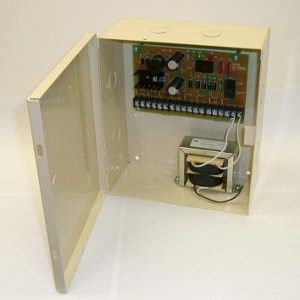

12V 10A 9CH 120W ptc fuse cctv power supply cctv camera switch power supply
Feature: 1. Power ON/OFF switch; Spare fuses included 3.AC power LED indicator | |
Input/Output Specifications | |
Input Voltage | AC90-240V,50/60Hz |
Total Output Power | 120W |
Output Voltage | 12VDC |
Output Current | 10 A (1120mA/output,9 channels for 9 sets security cameras) |
Fuse Type | Glass fuse |
Fuse Rate | 0.5Amps/250VAC |
Protection | |
General Protection | each output has individual fuse and LED indicator, when problem occurs, only affect the individual output, other outputs still working; |
Circuit Short Protection | when short condition occurs, individual fuse will open the circuit, when condition removed, replacing another new fuse will back to close; |
High Voltage Protection | when high voltage occurs, the surge protection will be hit through to protect the connected device; |
Over Current Protection | when over current occurs, the power supply will automatically switch to self-protection status, when condition removed, then switch back to normal. |
Load Regulation | ±5% |
General Specifications | |
Operating Temperature | 0°C~40°C |
Storage Temperature | -20°C~+85°C |
Operating Relative Humidity | 5%~95%RH |
Dimension/Weight | 235*205*50mm/1.6kg |
Application | 1.Digital and electronic products |
