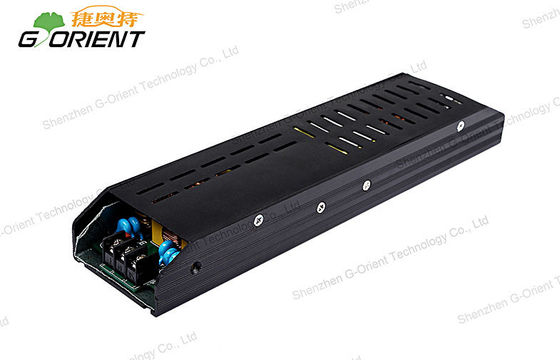

High Power 29mm Ultra thin AC/DC Switching Power Supply 300W 5V 60A

High Power 29mm Ultra thin AC/DC Switching Power Supply 300W 5V 60A

  • High Power 29mm Ultra thin AC/DC Switching Power Supply 300W 5V 60A
High Power 29mm Ultra thin AC/DC Switching Power Supply 300W 5V 60A
Product Details:
Place of Origin: China
Brand Name: G-ORIENT
Certification: ISO9001 / CE / ROHS / FCC
Model Number: NHP300-5-A
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: negotiable
Packaging Details: 20pcs/16Kgs / CARTONS
Delivery Time: 10 working days after received your payment
Payment Terms: T/T, Paypal, L/C, Western Union
Supply Ability: 50,000pcs per month
Contact Now
Detailed Product Description
Application: LED TV, Advertising Display Ripple & Noise: ≤250mVp-p
Input: 100-240V AC Output Power: 300W
Output: 5V DC / 60A Size: 242*58*29mm
High Light:

universal power supply

,

high voltage power supply



High Power 29mm Ultra thin AC/DC Switching Power Supply 300W 5V 60A





Competitive Advantage:

* Ultra-thin 29mm

* High efficiency up to 90%

* Low output ripple and noise

* Output over-current,short-circuit,over-load,over-voltage protection

* Synchronous rectification+PFC

* Ultra-low start up temperature-40℃

* CE / ROHS / FCC approval





Company Advantage:

* Cheap wholesale price

* High quality products

* Short lead time

* Professional R&D team

* Standardized production process

* Best after sale service





Specifications:

Switching power supply

 NHP300-5-A

 OUTPUT

DC Voltage

 5V

Current Range

 0~60A

Rated Current

 60A

Rated Power

 300W

Ripple & Noise(max.)

 <200mVp-p

Regulation

 ≦+/-3%

Leakage current

 ≦3.5mA

 INPUT

Voltage Range

 100-240V AC

Frequency Range

 47-63Hz

Efficiency(Typ.)

 90%

 Environment

Storage Temperature

 -40 ~ +85℃

Operaing Temperature

 -40 ~ +80℃

Relative Humidity

 10%-95%

Cooling

 Natural convection

 Safety

Safety standards

 CE

 Withstand Voltage

Input-output withstand vol.

 3000Vac/10mA/1min

Input-FG withstand vol.

 1500Vac/10mA/1min

Output-FG withstand vol.

 500Vac/10mA/1min

 Others

Dimension

 212*58*29mm (L*W*H)

Packing







Features:

* Synchronous rectification,high power factor>0.95

* High efficiency up to 90%

* Low output ripple and noise,high reliability

* With over-current/over-voltage/short-circuit/over-power protection

* Ultra-low start up temperature -40℃

* 2 years warranty





Applications:



1. Electrical equipment, Instrumentation;

2. Digital and electronic products;

3. Advisement player

4. LED display,LCD TV, LED TV

5. Display screen,LED video wall

6. Communications and security products.
